Description

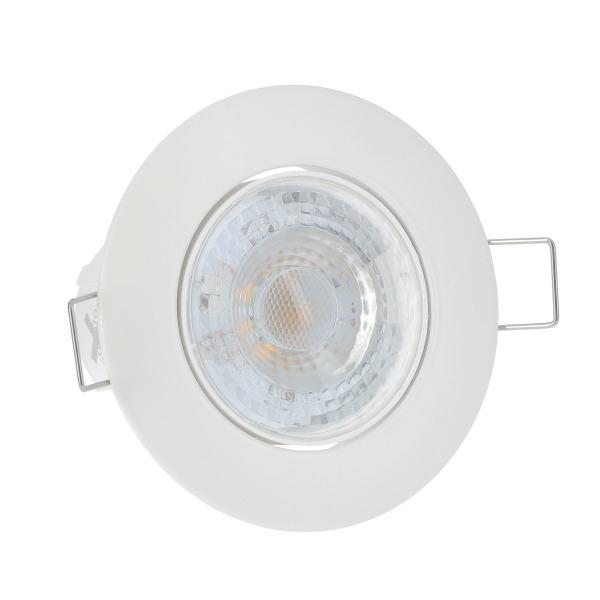

Legrand 3W LED ROUND SPOTLIGHT WITH INTEGRATED DRIVER 3000K 100-240VAC
EXTERNAL DIMENSIONS
- 3W : Ø 80 mm
- 5W : Ø 80 mm
- 7W : Ø 80 mm
Warranty: 2 years
Legrand is the global specialist in electrical and digital infrastructures, offering high value added products and solutions for commercial, residential and industrial buildings.
Product characteristics
Legrand LED Spot, for 68 mm bolt circle; Power supply integrated in the housing; Color rendering index greater than 80; Supply voltage 100 - 240 VAC, 50/60 Hz; Beam angle 36 °; Protection class II; Lifespan up to 30,000 hours, protection class IP 20, housing material: aluminum; Color white.
|
Light distribution |
symmetrical |
|
Beam angle |
medium beam 21-40 ° |
|
IP protection) |
IP20 |
|
Impact resistance |
IK02 |
|
Protection class |
II |
|
Max. System performance |
3 W | 5W | 7 W |
|
Light color |
White |
|
Color temperature |
3000 ... 3000 K. |
|
Color rendering index CRI |
80-89 |
|
Rated luminous flux according to IEC 62722-2-1 |
270 lm | 450 lm | 630lm |
|
Height / depth |
58 mm |
|
outer diameter |
80 mm |
|
Suitable for ceiling mounting |
Yes |
