Description

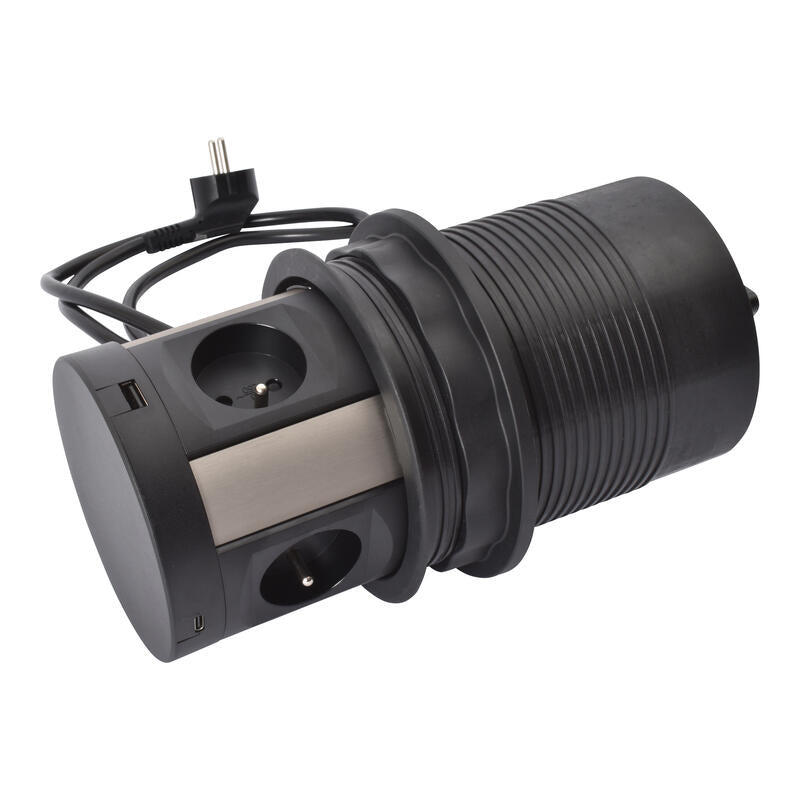

Legrand Incara Tower 120 Ø121mm to recess into furniture with 4x2P+E sockets, 4xUSB chargers and cord
Incara Tower 60, a retractable product to be built into meeting tables or work surfaces, offers a discreet electrical and data connection with its reduced diameter of 60mm
Product characteristics
- Drilling diameter 125mm
- Aluminum body
- Color: aluminum and black
- Retractable tower with automatic opening at the touch of a button
Technical characteristics
- ModelRecessed
- LiftableYes
- StretchableYes
- ShapeRound
- MaterialPlastic
- ColorBlack
- Length181.7mm
- Installation depth181.7mm
- Diameter145mm
- Number of sockets with earth contact4
- Number of French standard sockets (type E)4
- Number of USB connections4
- Protection against overvoltageNo
- With built-in USB power supplyYes
- Nominal voltage250V
- Protection index (IP)IP20
- Impact protection index (IK)IK06
- Antibacterial treatmentNo
- Operating temperature-5-35°C
- Storage temperature-10-70°C
- Voltage typeAC
- Supply current16-16A
- Standby consumption0.08mA
- Connection terminal identification indicationNo
- Halogen-freeYes
- pre-wiredNo
- Terminal typeNot applicable
- Equipped with a label holderNo
Benefits

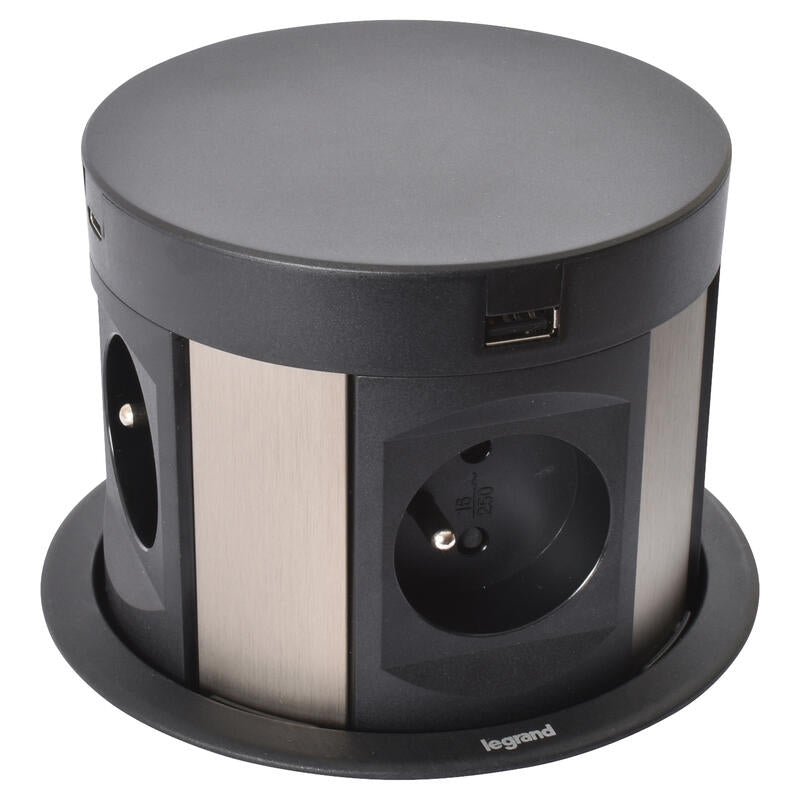

Power outlets and USB chargers located all around the product
THE + facility

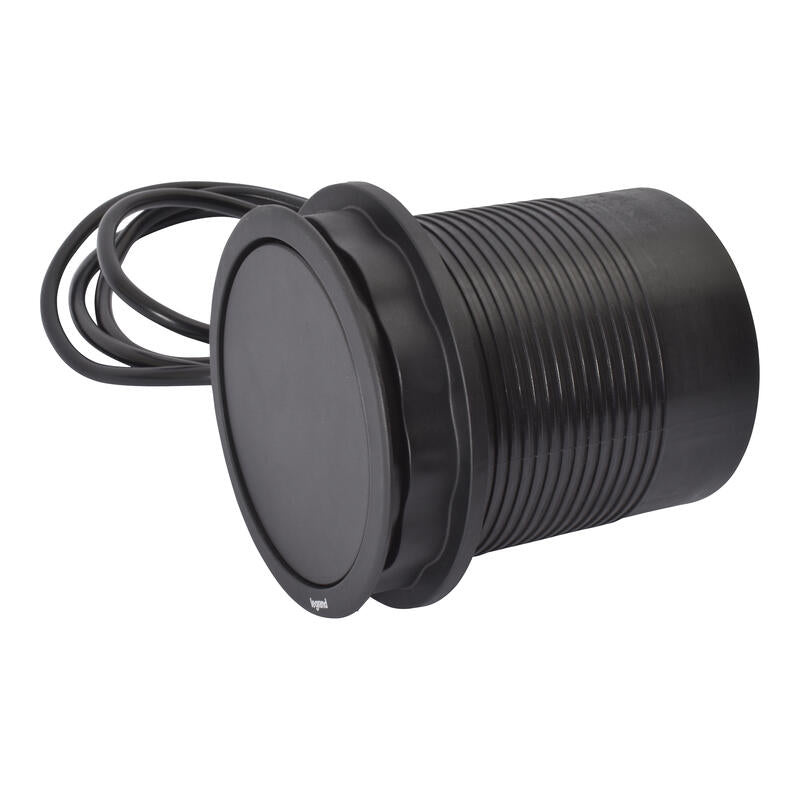

Easy fixing with a lockable screw ring
THE + use
360° accessibility
Recommendations/restrictions of use
- To be embedded in furniture thickness 10-40mm
Information on the range
Incara, a new range of electrification products dedicated to furniture, improves users' lives by providing them with functionality, ergonomics, comfort and speed of installation, in any type of space: in the office, at home, in a hotel, a cafe or an airport. The diversity of solutions allows for harmonious integration into all furniture. Trendy, Incara finishes help to enhance spaces with aesthetics and modernity. Incara, a simple way for users to stay connected anywhere, anytime and anywhere.
