Description

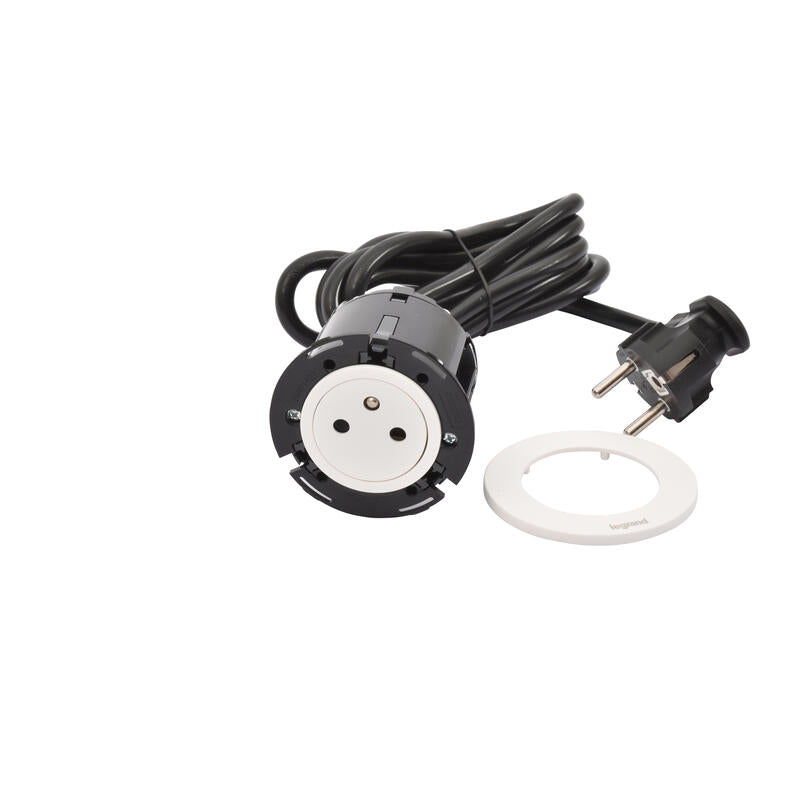

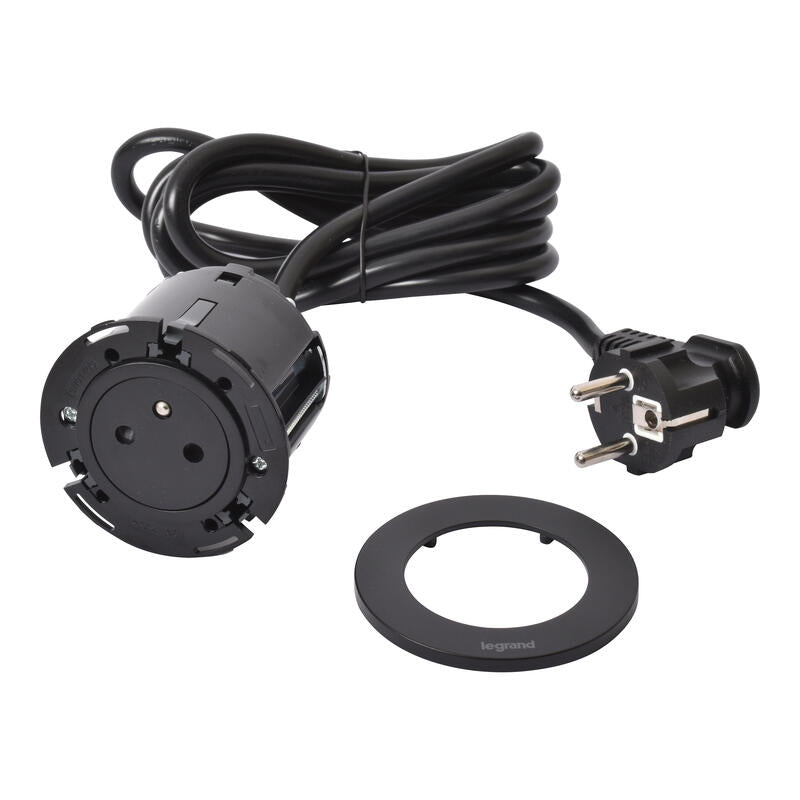

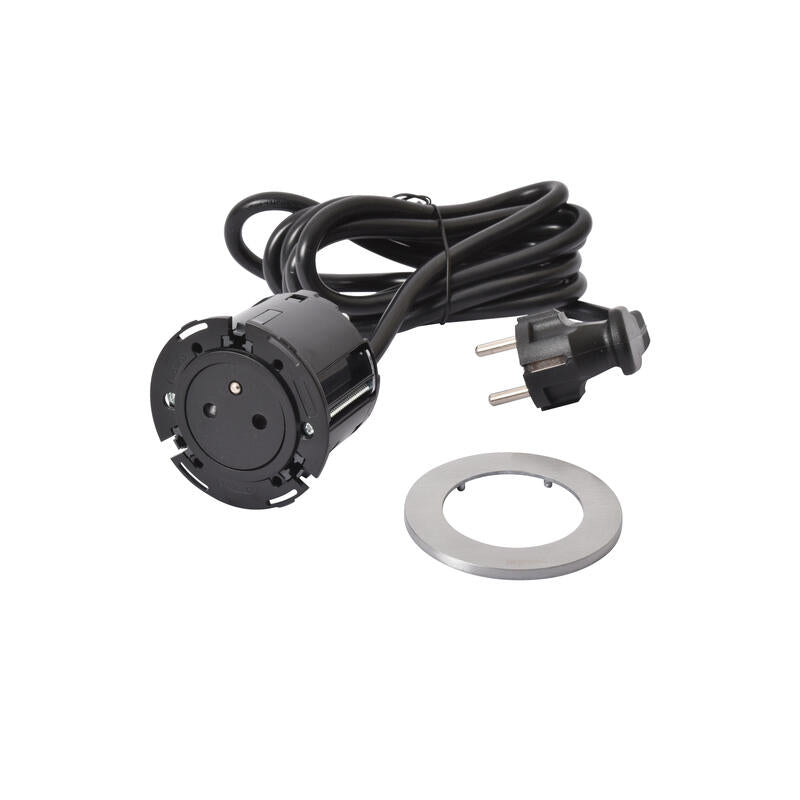

Legrand Incara Disq 60 equipped with 1 2P+E Surface socket delivered with 2m cord equipped with a 2P+E plug - Ø60mm (Choose from White, Black or Metal)
Incara Disq 60 adapts to all environments such as the office, partitions, armrest of an armchair or metal locker in order to provide a power outlet or a USB A+C charger
Product characteristics
- Finish taken: white/black
- Comes with white/black/metal finishing ring
- 60 mm diameter drilling
- Drilling diameter 60mm
Technical characteristics
- ModelRecessed
- LiftableNo
- StretchableNo
- ShapeRound
- MaterialPlastic
- Height54.5mm
- Installation depth50mm
- Diameter74mm
- Number of French standard sockets (type E)1
- Protection against overvoltageNo
- With built-in USB power supplyNo
- Nominal voltage250V
- Protection index (IP)IP20
- Impact protection index (IK)IK07
- Antibacterial treatmentNo
- Operating temperature-5-35°C
- Storage temperature-10-70°C
- Voltage typeAC
- Supply current16-16A
- Standby consumption0.06mA
- Connection terminal identification indicationYes
- Halogen-freeNo
- pre-wiredYes
- Terminal typeNot applicable
- Terminal capacity2.5-2.5 mm²
- Equipped with a label holderNo
- EAN/Gencode3414972001731
Benefits
Compatible with any wooden support or 1mm metal sheet
THE + facility
Fits into 1mm metal panel
THE + use
Integrated and compact electrification solution
Recommendations/restrictions of use
- To be embedded in furniture thickness 6-40mm
Information on the range
Incara, a new range of electrification products dedicated to furniture, improves users' lives by providing them with functionality, ergonomics, comfort and speed of installation, in any type of space: in the office, at home, in a hotel, a cafe or an airport. The diversity of solutions allows for harmonious integration into all furniture. Trendy, Incara finishes help to enhance spaces with aesthetics and modernity. Incara, a simple way for users to stay connected anywhere, anytime and anywhere.
