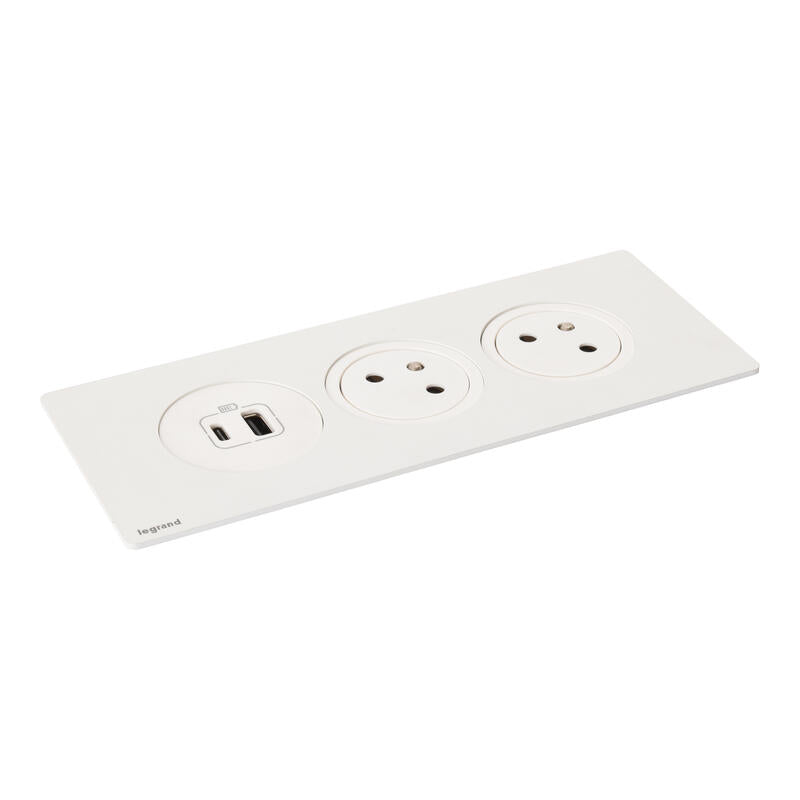

Legrand Incara Disq'In 3-Stations: 2P+E Sockets, White USB Type-A+Type-C Charger, Plate Required


Price:
Sale priceRs 5,050.00

Description

Legrand Incara Disq'In 3 stations with 2 2P+E Surface sockets, 1 white USB Type-A+Type-C charger - to be fitted with plate

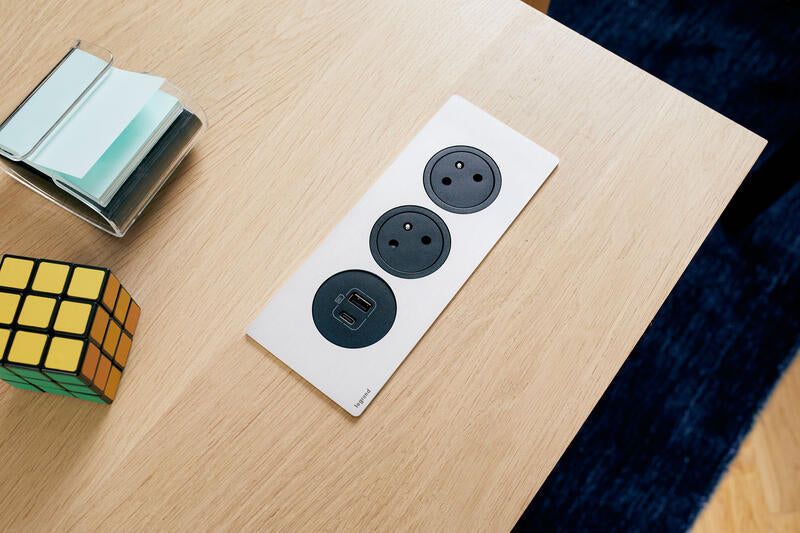

Incara Disq'In is an elegant and refined connection solution that integrates into the furniture to supply the workstation with energy and data. Disq'In is ready to use thanks to its pre-wiring, and quick to install

Product characteristics

  • 3 positions
  • White colored sockets
  • Retractable fixing claws
  • To be fitted with a finishing plate

Technical characteristics

  • ModelRecessed
  • LiftableNo
  • StretchableNo
  • ShapeRectangular
  • MaterialAluminum
  • ColorWhite
  • Length229.5mm
  • Width74mm
  • Height73mm
  • Installation depth71mm
  • Number of sockets with earth contact2
  • Number of USB connections2
  • Protection against overvoltageNo
  • With built-in USB power supplyYes
  • Nominal voltage250V
  • Protection index (IP)IP20
  • Impact protection index (IK)IK07
  • Antibacterial treatmentNo
  • Operating temperature-5-35°C
  • Storage temperature-10-70°C
  • Voltage typeAC
  • Supply current16-16A
  • Connection terminal identification indicationYes
  • Halogen-freeYes
  • pre-wiredYes
  • Terminal typeScrew terminal
  • Terminal capacity1.5-2.5 mm²
  • Equipped with a label holderNo
  • EAN/Gencode3414971973527

Benefits

  • Very quick fixing by pressure on 4 claws with a screwdriver
  • Neat aesthetics with Surface Legrand sockets
  • Metal finishing plate available in white, black and brushed metal

THE + facility

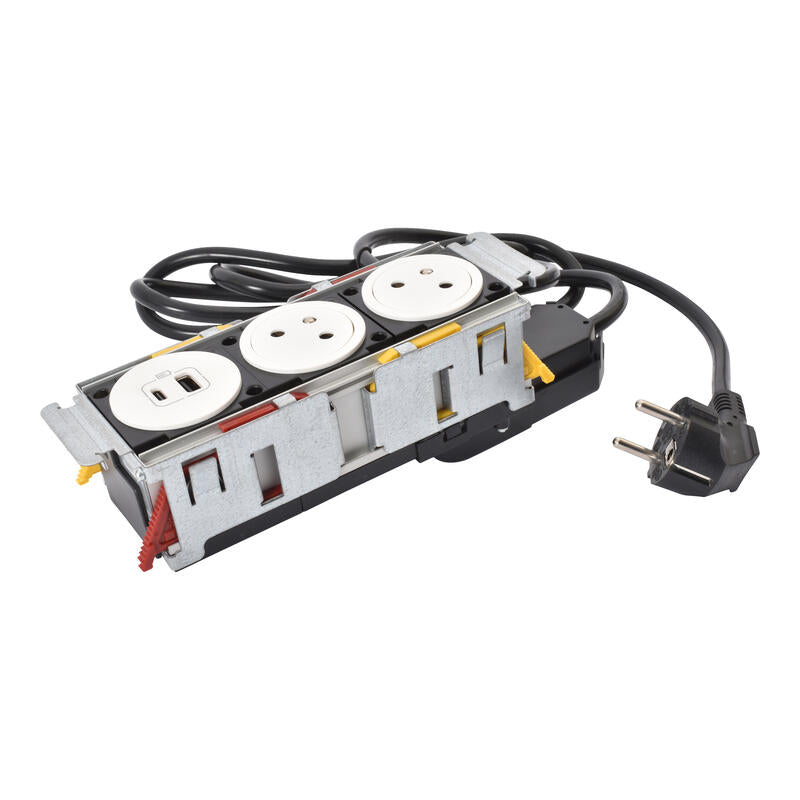

Easy and quick fixing thanks to retractable fixing claws

THE + use

Integrated and compact electrification solution

Recommendations/restrictions of use

  • To be embedded in furniture thickness 10-40mm

Information on the range

Incara, a new range of electrification products dedicated to furniture, improves users' lives by providing them with functionality, ergonomics, comfort and speed of installation, in any type of space: in the office, at home, in a hotel, a cafe or an airport. The diversity of solutions allows for harmonious integration into all furniture. Trendy, Incara finishes help to enhance spaces with aesthetics and modernity. Incara, a simple way for users to stay connected anywhere, anytime and anywhere.
