Description

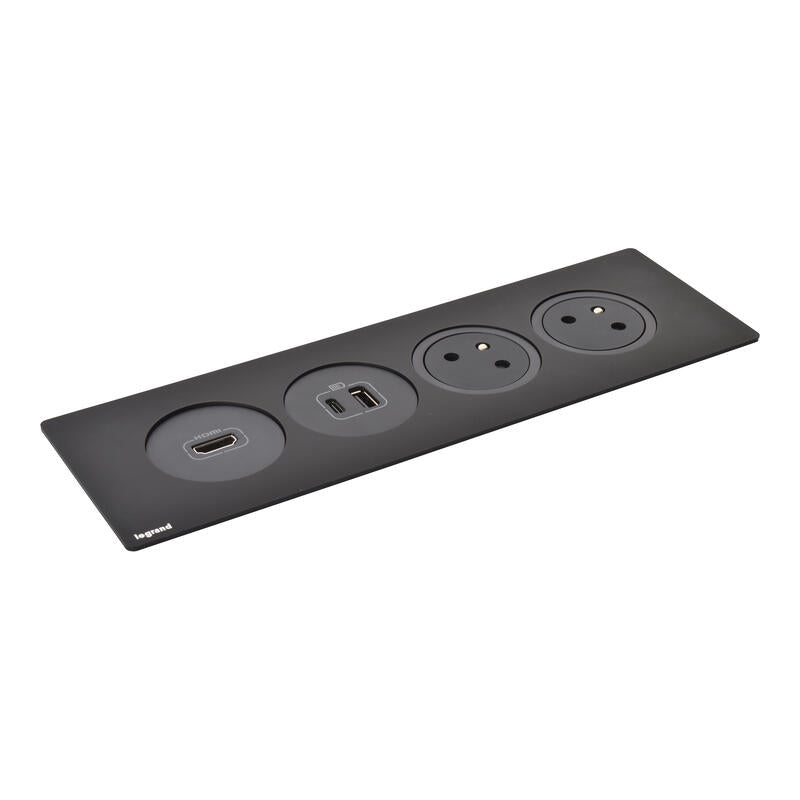

Legrand Incara Disq'In 2 stations with 2 2P+E Surface sockets, USB Type-A+C charger and black HDMI socket - to be fitted with plate
Incara Disq'In is an elegant and refined connection solution that integrates into the furniture to supply the workstation with energy and data. Disq'In is ready to use thanks to its pre-wiring, and quick to install
Product characteristics
- 4 positions
- Black colored sockets
- Retractable fixing claws
- To be fitted with a finishing plate
Technical characteristics
- ModelRecessed
- LiftableNo
- StretchableNo
- ShapeRectangular
- MaterialAluminum
- ColorBlack
- Length280.5mm
- Width74mm
- Height73mm
- Installation depth71mm
- Number of HDMI connections1
- Number of USB connections2
- Protection against overvoltageNo
- With built-in USB power supplyYes
- Nominal voltage250V
- Protection index (IP)IP20
- Impact protection index (IK)IK07
- Antibacterial treatmentNo
- Operating temperature-5-35°C
- Storage temperature-10-70°C
- Voltage typeAC
- Supply current16-16A
- Connection terminal identification indicationYes
- Halogen-freeYes

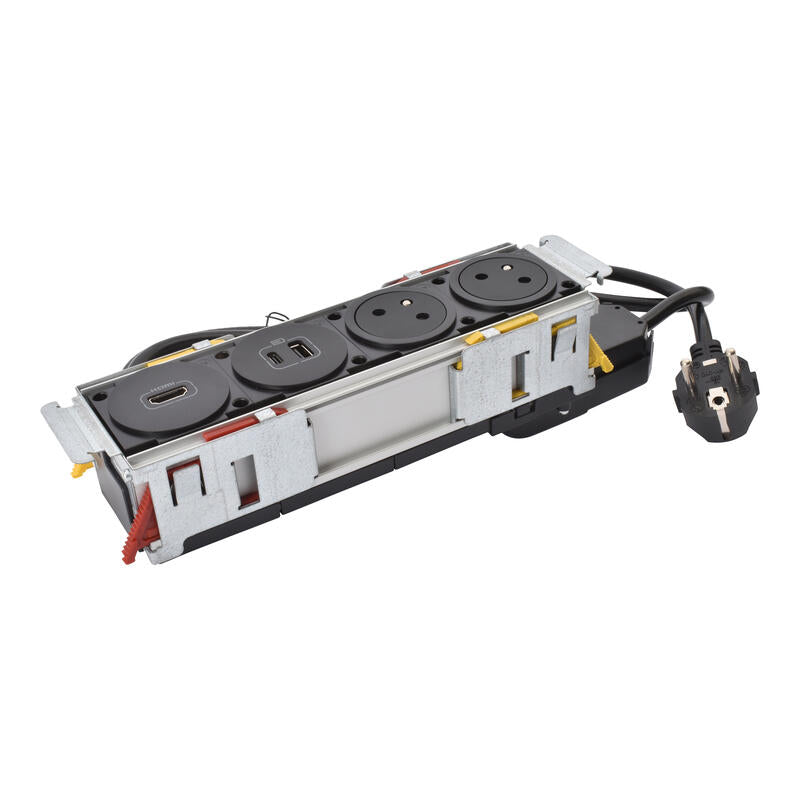

- pre-wiredYes
- Terminal typeScrew terminal
- Terminal capacity1.5-2.5 mm²
- Equipped with a label holderNo
- EAN/Gencode3414971973602
Benefits
- Very quick fixing by pressure on 4 claws with a screwdriver
- Neat aesthetics with Surface Legrand sockets

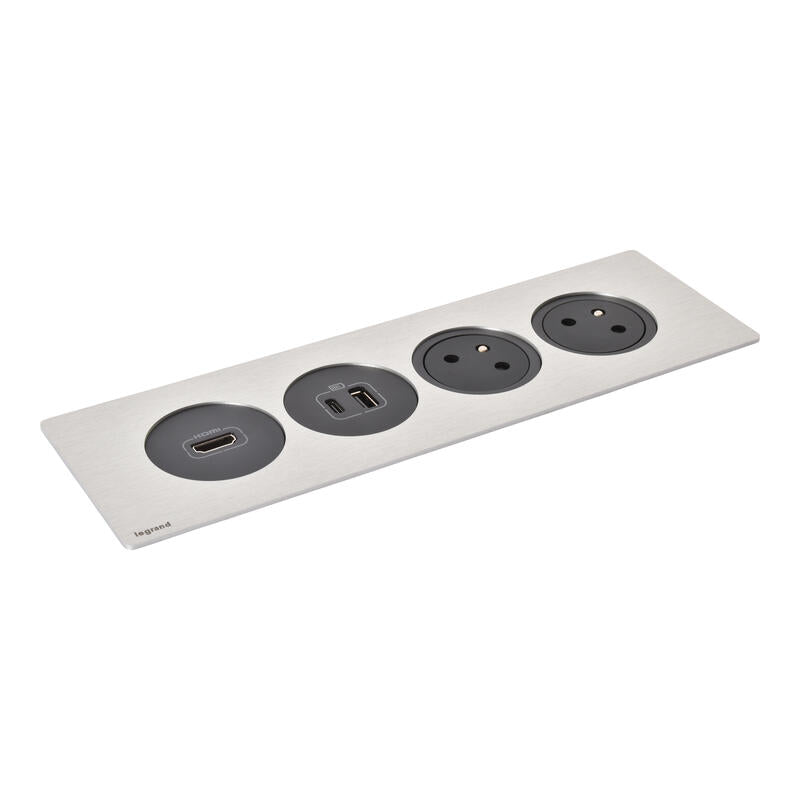

- Metal finishing plate available in white, black and brushed metal
THE + facility
Easy and quick fixing thanks to retractable fixing claws
THE + use
Integrated and compact electrification solution
Recommendations/restrictions of use
- To be embedded in furniture thickness 10-40mm
Information on the range
Incara, a new range of electrification products dedicated to furniture, improves users' lives by providing them with functionality, ergonomics, comfort and speed of installation, in any type of space: in the office, at home, in a hotel, a cafe or an airport. The diversity of solutions allows for harmonious integration into all furniture. Trendy, Incara finishes help to enhance spaces with aesthetics and modernity. Incara, a simple way for users to stay connected anywhere, anytime and anywhere.
