Description

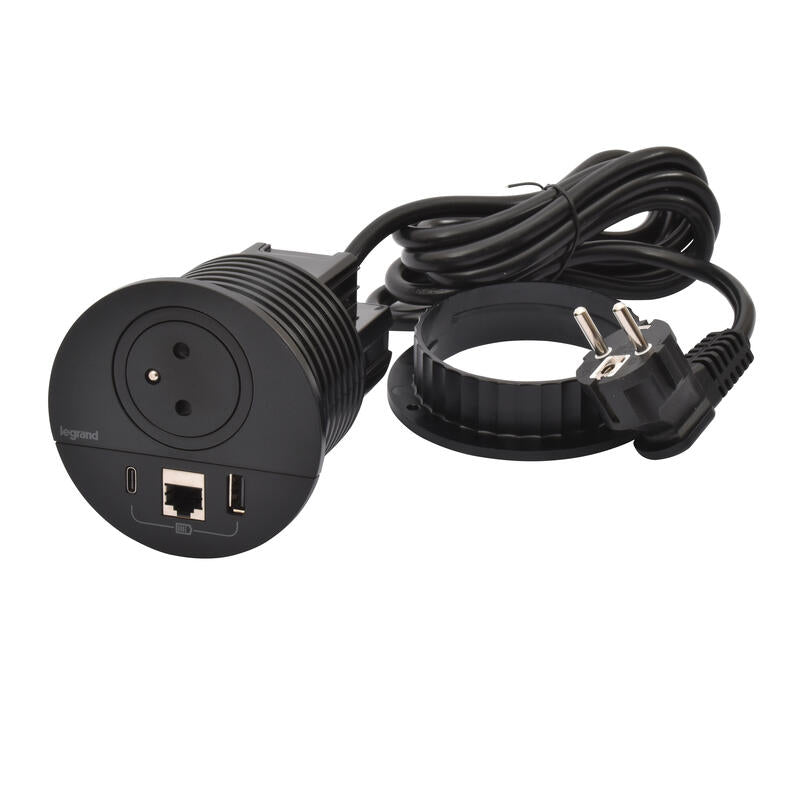

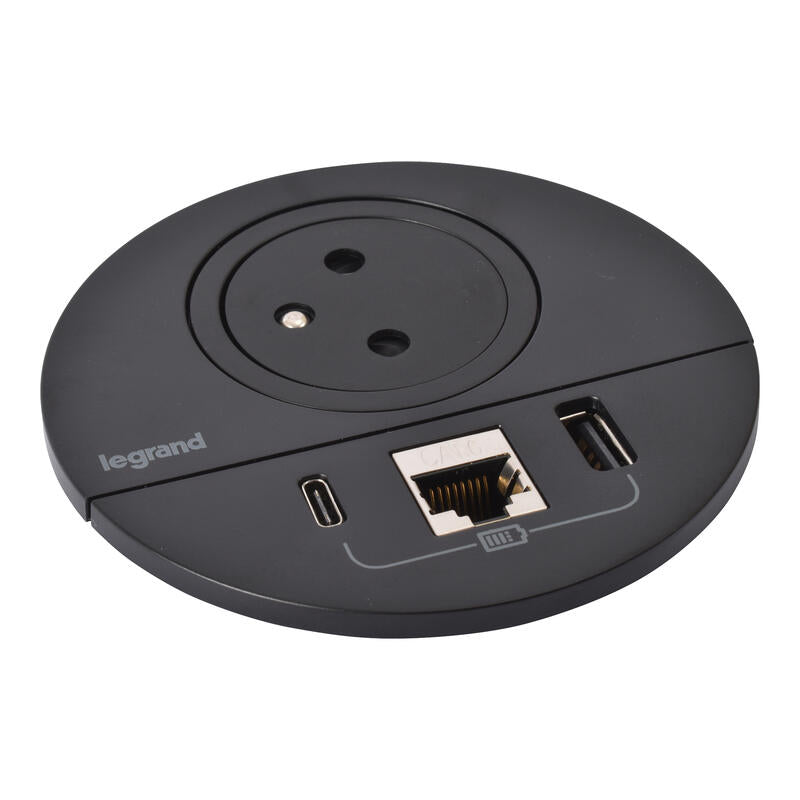

Legrand Incara Disq 80 2P+E Surface socket, USB Type-A+C charger, RJ45 category 6 FTP 2m cord with 2P+E plug - black Ø80mm
Incara Disq 80 is a solution designed for nomadic workers. Incara Disq 80 fits into a 79mm diameter hole and offers a power outlet, USB charging and network access in a small footprint
Product characteristics
- Finish taken: black
- Plate finish: black
- Drilling diameter 79mm
- Comes with fixing ring
Technical characteristics
- Model: Recessed
- Liftable: No
- Stretchable: No
- Shape: Round
- Material: Plastic
- Color: Black
- Height: 113mm
- Installation depth: 109mm
- Diameter: 105mm
- Number of French standard sockets (type E): 1
- Number of USB connections: 2
- Number of CAT 6 connections: 1
- Protection against overvoltage: No
- With built-in USB power supply: Yes
- Nominal voltage: 250V
- Protection index (IP): IP20
- Impact protection index (IK): IK07
- Antibacterial treatment: No
- Operating temperature: -5-35°C
- Storage temperature: -10-70°C
- Voltage type: AC
- Supply current: 16-16A
- Standby consumption: 0.06mA
- Connection terminal identification indication: Yes
- Halogen-free: No
- pre-wired: Yes
- Terminal type: Not applicable
- Terminal capacity: 2.5-2.5 mm²
- Equipped with a label holder: No
- EAN/Gencode: 3414971971387
Benefits
- Fixing ring with quick step
THE + facility
Fits into a standard 80mm diameter.
THE + use
Integrated and compact electrification solution
Recommendations/restrictions of use
- To be embedded in furniture thickness 1-40mm
Information on the range
Incara, a new range of electrification products dedicated to furniture, improves users' lives by providing them with functionality, ergonomics, comfort and speed of installation, in any type of space: in the office, at home, in a hotel, a cafe or an airport. The diversity of solutions allows for harmonious integration into all furniture. Trendy, Incara finishes help to enhance spaces with aesthetics and modernity. Incara, a simple way for users to stay connected anywhere, anytime and anywhere.
