Description

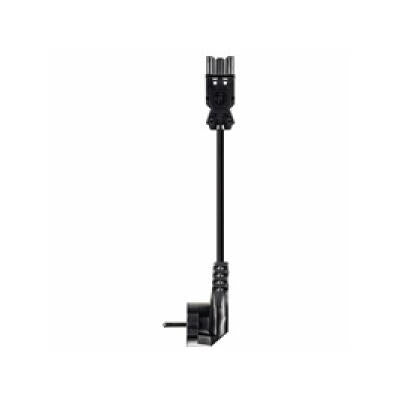

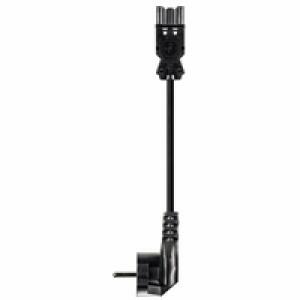

Legrand GST18 extension cord/2P+T plug which allows you to easily adapt the length of Incara products equipped with cord with GST18 plug (Choose between 2m or 3m)
GST18 extension cord/2P+T plug allows you to easily adapt the length of Incara products equipped with cord with GST18 plug
Product characteristics
- H05VVF-3G1.5
- GST18 female plug and 2P+E FR/SCH plug
- H05VVF-3G1.5
Technical characteristics
- Rated voltage (Ue)250V
- Rating/rated rated current (In)16A
- Number of poles3
- Type of constructed conduitPower cable
- Finishing side 1Plug (male)
- Finishing side 2Other
- Treatment of conductor endsOther
- Total length2000/3000mm
- Mechanical codingYes
- Color coding/contact insertBlack
- Housing/Body ColorBlack
- Cable typeH05VV-F
- Cable diameter8.3-8.3mm
- Sheath colorBlack
- Pole markingL, N, PE
- Nominal conductor section1.5 mm²
- Insulating part resistant to continuous temperature up to100°C
- Conductor resistant to continuous temperature up to70°C
- Contact surface treatmentTin plated
- Degree of pollution2
- Rated shock withstand voltage4kV
- Reaction to fire class according to EN 13501-6Eca
THE + facility
Quick connection without tools
THE + use
Allows you to easily adapt the length of the cords of Incara products equipped with GST18 plugs
Recommendations/restrictions of use
- GST18 connector protection box to be ordered separately
Information on the range
Incara, a new range of electrification products dedicated to furniture, improves users' lives by providing them with functionality, ergonomics, comfort and speed of installation, in any type of space: in the office, at home, in a hotel, a cafe or an airport. The diversity of solutions allows for harmonious integration into all furniture. Trendy, Incara finishes help to enhance spaces with aesthetics and modernity. Incara, a simple way for users to stay connected anywhere, anytime and anywhere.
