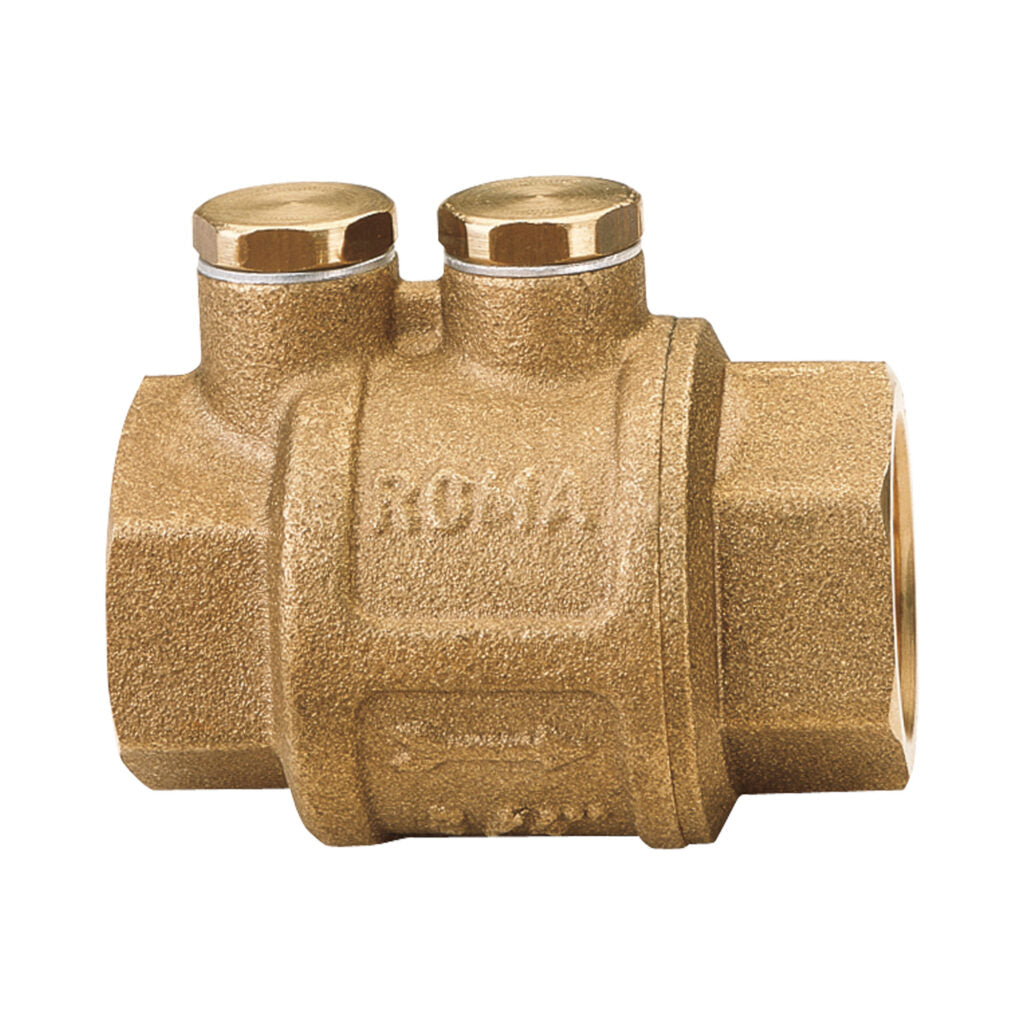

ITAP Non Return Valve - Roma


Dimension: 1/2
Price:
Sale priceRs 449.00 MUR

Description

Suitable for domestic water services, heating, air-conditioning plants and compressed air.
They can be installed in any position: vertical, horizontal, oblique.
Suitable for use with gasoline and fuels in general.

Body in brass.
Plate in stainless steel.
Washer in Viton®.
Spring: stainless steel.
Outlet plugs in brass, thread 1/4”.
Minimum working temperature: -20°C.
Maximum working temperature: 100°C with water ;150°C with fluid hydrocarbons or compressed air.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).



1/2" (DN 15) 25bar/362.5psi
3/4" (DN 20) 25bar/362.5psi
1" (DN 25) 25bar/362.5psi
1"1/4 (DN 32) 18bar/261psi
1"1/2 (DN 40) 18bar/261psi
2" (DN 50) 18bar/261psi
