Description
Cutting width: 49 cm
Power output: 2,1 kW
Cylinder Displacement: 45.7cc
Warranty: 1 year
Product Description

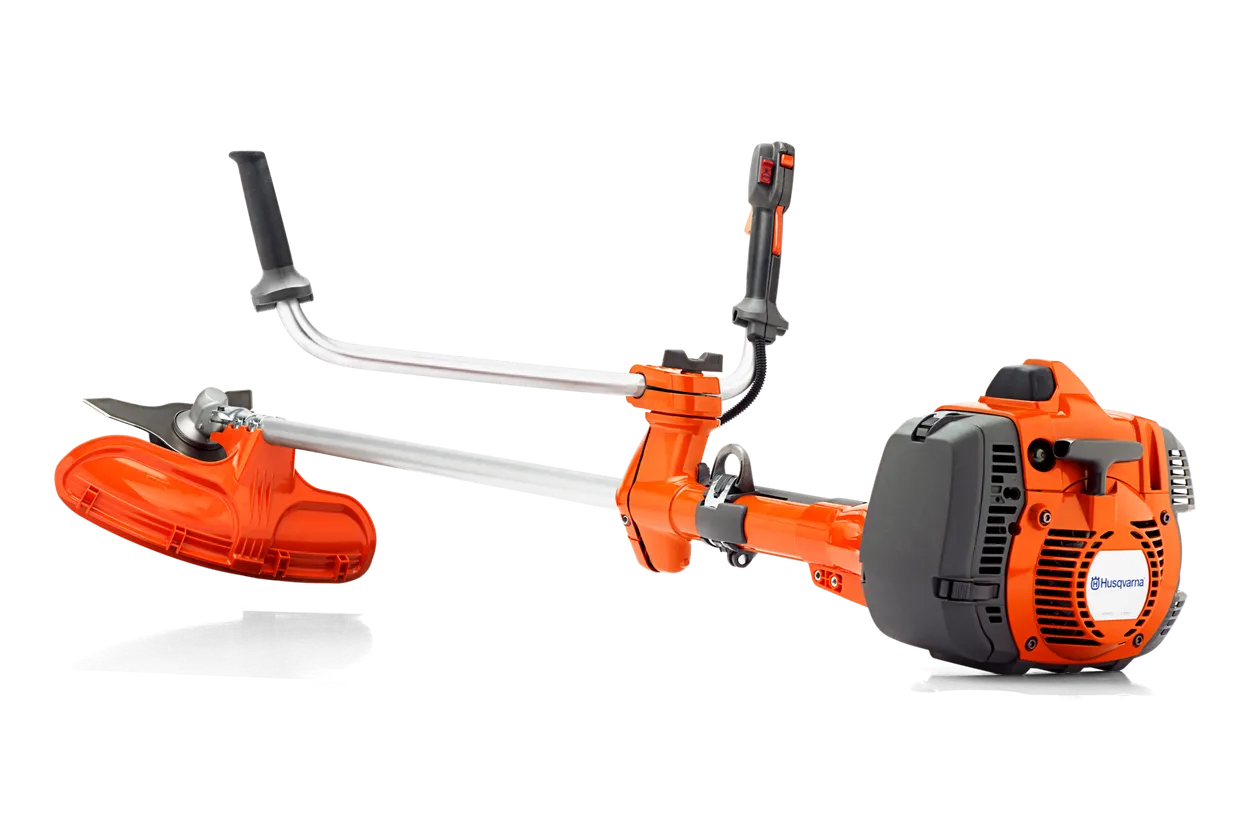

Husqvarna 545FR comes complete with trimmer head, grass blade and saw blade. This flexibility makes it an ideal solution for people who require the benefits both products offer in one, effective package. The X-Torq® engine provide raw power and excellent fuel economy. LowVib® vibration damping maximizes user comfort and control.
| Engine |
545FR
Art no: 967 63 79‑01
|
| Cylinder displacement | 45,7 cm³ |
|---|---|
| Power output | 2,1 kW |
| Fuel tank volume | 0,9 l |
| Fuel consumption | 450 g/kWh |
| Maximum power speed | 9 000 rpm |
| Idling speed | 2 700 rpm |
| Maximum rpm output shaft | 8 800 rpm |
| Electrode gap | 0,5 mm |
| Clutch engagement speed (±120) | 3 900 rpm |
| Torque, max. | 2,6 Nm |
| Torque, max. at rpm | 6 000 rpm |
| Spark plug | NGK CMR6H |
| Equipment | |
| Grass blade | Multi 300-3 |
| Harness | Balance X |
| Saw blade | Scarlett 200-22 |
| Trimmer head | T45X M12 |
| Capacity | |
| Cutting width | 49 cm |
| Transmission | |
| Gear ratio | 1,4 |
| Drive gear angle | 35 ° |
| Dimensions | |
| Tube diameter | 32 mm |
| Weight (excl. cutting equipment) | 8,7 kg |
| Tube length | 1 384 mm |
| Lubricant | |
| Lubricant type | Husqvarna 2 stroke or equiv. at 50:1 |
| Lubricant type (bevel gear) | Biodegradable grease |
| Sound and Noise | |
| Sound pressure level at operators ear | 100 dB(A) |
| Sound power level, guaranteed (LWA) | 117 dB(A) |
| Emission | |
| Exhaust emissions (HC average) | 36,45 g/kWh |
| Exhaust emissions (CO average) | 262,85 g/kWh |
| Exhaust emissions (CO average) | 269,16 g/kWh |
| Exhaust emissions (NOx average) | 1,96 g/kWh |
| Exhaust emissions (NOx average) | 1,76 g/kWh |
| Vibration | |
| Equivalent vibration level (ahv, eq) left handle | 3,6 m/s² |
| Equivalent vibration level (ahv, eq) right handle | 3,8 m/s² |
