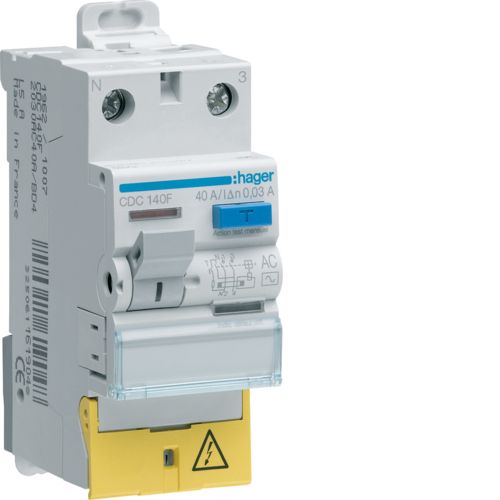

• Hager RCD (RCCD) 30mA 2P - 40A
1 1

Hager RCD (RCCD) 30mA 2P - 40A

Hager RCD (RCCD) 30mA 2P - 40A

Rs 1,076.00
Rs 1,076.00
Sale Sold out
Tax included.

Type : RCD

SKU : HGCDC240F

Collections : Circuit Breakers, Hager,

Availability : In Stock

Shipping & Returns

Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!

View full details



Hager RCD (RCCD) 30mA 2P - 40A



Architecture
Neutral position right
Number of poles 2 P
Fixing mode Din-Rail
Main electrical features
Rated operational voltage Ue 230 V
Frequency 50 Hz
Voltage
Rated insulation voltage 500 V
Rated impulse withstand voltage 4000 V
Electric current
Rated residual operating current 30 mA
Breaking and opening capacity 1.5 kA
Rated conditional short-circuit current Inc according to EN 61008-1 6 kA
Electric current / temperature
Dimensions
Depth of installed product 70 mm
Height of installed product 83 mm
Width of installed product 35 mm
Power
Total power loss under IN 2.32 W
Tripping
Short-time delayed tripping No
Residual current trip mode Undelayed
Endurance
Electric endurance in number of cycles 2000
Number of mechanical operations 4000
Capacity
Number of modules 2
Installation, mounting
Tightening torque 2,8Nm
Connection
Connection cross-sect. flexible conductor 16mm²
Connection cross-sect. rigid cable 25mm²
Type of connection with screw
Standards
Standard text EN 61008-1
European directive WEEE concerned
Safety
Protection index IP IP20
Residual current type AC
Use conditions
Operating temperature -25/40 °C
Storage temperature -55/70 °C
Temperature
Operating temperature -25/40 °C
