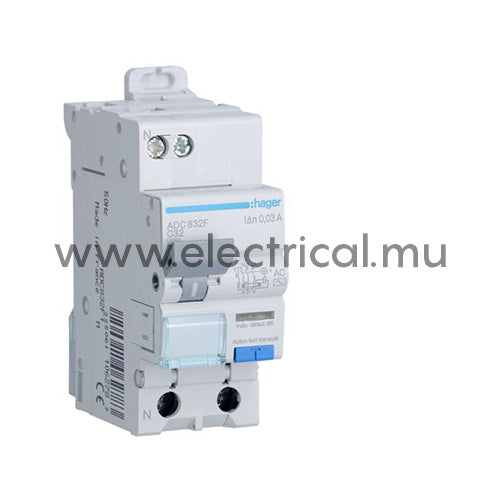

• Hager RCBO 30mA 1P+N - 32A
1 1

Hager RCBO 30mA 1P+N - 32A

Hager RCBO 30mA 1P+N - 32A

Rs 3,290.00
Rs 3,290.00
Sale Sold out
Tax included.

Type : RCBO

SKU : HGADC832F

Collections : Circuit Breakers, Hager,

Availability : In Stock

Shipping & Returns

Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!

View full details

Hager RCBO 30mA 1P+N - 32A

Architecture
Neutral position left
Number of poles 2 P
Type of pole 1P+N
Curve C
Main electrical features
Rated operational voltage Ue 240 V
Frequency 50 Hz
Rated current
Voltage
Rated insulation voltage 500 V
Max operating voltage 0 V
Rated impulse withstand voltage 4000 V
Electric current
Rated residual operating current 30 mA / 300mA
Breaking and opening capacity 4.5 kA
Electric current / temperature
Rating current 30°C
Dimensions
Depth of installed product 68 mm
Height of installed product 0 mm
Width of installed product 0 mm
Power
Total power loss under IN 3.4 W
Tripping
Short-time delayed tripping No
Endurance
Electric endurance in number of cycles 2000
Number of mechanical operations 2000
Capacity
Number of modules 2
Installation, mounting
Tightening torque 10Nm
Connection
Connection cross-sect. flexible conductor 1,5 bis 95mm²
Connection cross-sect. rigid cable 1,5 to 95mm2
Type of connection with screw
Standards
Standard text EN 61009-1
European directive WEEE concerned
Safety
Protection index IP IP20
Residual current type AC
Use conditions
Operating temperature -25/40 °C
Storage temperature -25/70 °C
Temperature
Operating temperature -25/40 °C
