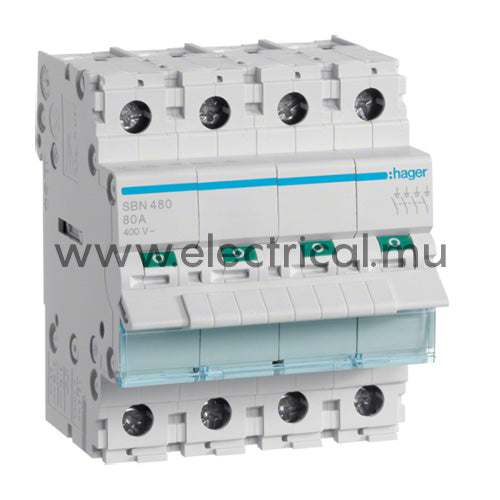

Hager Modular Switch 4P - 80A

Hager Modular Switch 4P - 80A

Rs 2,680.00
Rs 2,680.00
Sale Sold out
Tax included.

Type : Modular Switch

SKU : HGSBN480

Collections : Circuit Breakers, Hager,

Availability : In Stock

Shipping & Returns

Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!

View full details

Hager Modular Switch 4P - 80A

Architecture
Neutral position without neutral
Number of poles 4 P
Type of pole 4 P
Main electrical features
Rated operational voltage Ue 400 V
Frequency 50;60 Hz
Rated current
Voltage
Rated insulation voltage 440 V
Rated impulse withstand voltage 4000 V
Dimensions
Depth of installed product 68 mm
Height of installed product 83 mm
Width of installed product 35 mm
Power
Total power loss under IN 3.6 W
Endurance
Electrical durability at nominal load in AC22 in operating cycles 25000
Number of mechanical operations 200000
Capacity
Number of modules 2
Installation, mounting
Tightening torque 1,8Nm
Connection
Connection cross-sect. flexible conductor 1,5 ; 10mm²
Connection cross-sect. rigid cable 1,5 ; 16mm²
Type of connection with screw
Equipment
Can be accessorized No
Standards
Standard text IEC 60947-3
European directive WEEE concerned
Safety
Protection index IP IP20
Use conditions
Storage temperature -40/80 °C
Temperature
Operating temperature -20/50 °C
