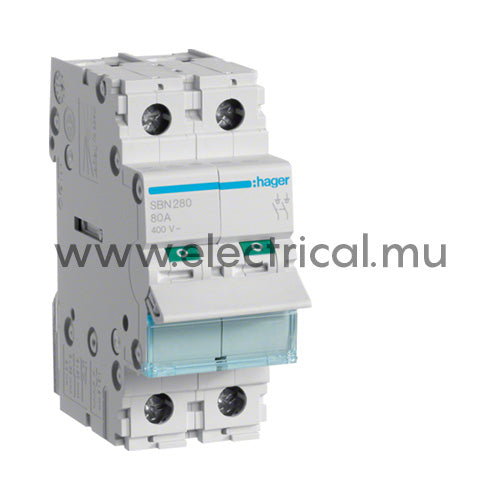

Hager Modular Switch 2P - 80A
Hager Modular Switch 2P - 80A
Regular price
Rs 1,795.00
Regular price
Sale price
Rs 1,795.00
Unit price
per
Tax included.
Type : Modular Switch
SKU : HGSBN280
Collections : Circuit Breakers, Hager,
Availability : Out Of Stock
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!
Hager Modular Switch 2P - 80A
| Architecture | |
|---|---|
| Neutral position | without neutral |
| Number of poles | 2 P |
| Type of pole | 2 P |
| Main electrical features | |
| Rated operational voltage Ue | 230 V |
| Frequency | 50;60 Hz |
| Rated current | |
| Voltage | |
| Rated insulation voltage | 440 V |
| Rated impulse withstand voltage | 4000 V |
| Dimensions | |
| Depth of installed product | 68 mm |
| Height of installed product | 83 mm |
| Width of installed product | 17.5 mm |
| Power | |
| Total power loss under IN | 3 W |
| Endurance | |
| Electrical durability at nominal load in AC22 in operating cycles | 25000 |
| Number of mechanical operations | 200000 |
| Capacity | |
| Number of modules | 1 |
| Installation, mounting | |
| Tightening torque | 1,8Nm |
| Connection | |
| Connection cross-sect. flexible conductor | 1,5 ; 10mm² |
| Connection cross-sect. rigid cable | 1,5 ; 16mm² |
| Type of connection | with screw |
| Equipment | |
| Can be accessorized | No |
| Standards | |
| Standard text | IEC 60947-3 ; IEC ; EN 60669-2 ; IEC ; EN 60669-4 |
| European directive WEEE | concerned |
| Safety | |
| Protection index IP | IP20 |
| Use conditions | |
| Storage temperature | -40/80 °C |
| Temperature | |
| Operating temperature | -20/50 °C |
