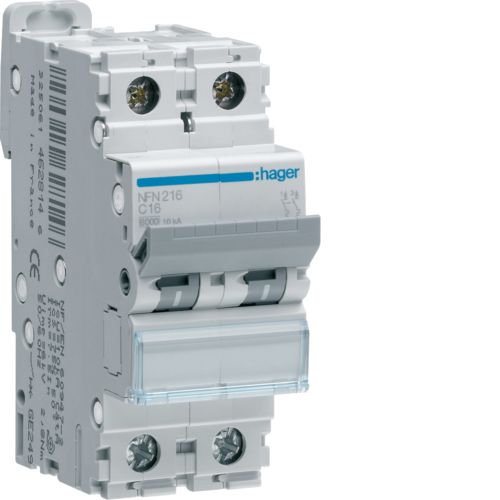

• Hager Circuit Breaker / Disjoncteur (C Curve) 2P - 16A
1 1

Hager Circuit Breaker / Disjoncteur (C Curve) 2P - 16A

Hager Circuit Breaker / Disjoncteur (C Curve) 2P - 16A

Rs 966.00
Rs 966.00
Sale Sold out
Tax included.

Type : MCB

SKU : HGNFN216

Collections : Circuit Breakers, Hager,

Availability : Out Of Stock

Shipping & Returns

Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!

View full details

Hager Circuit Breaker / Disjoncteur (C Curve) 2P - 16A



Architecture
Neutral position without neutral
Number of poles 2 P
Type of pole 2 P
Fixing mode Din-Rail
Curve C
Main electrical features
Rated operational voltage Ue 400 V
Type of supply voltage AC
Voltage
Rated insulation voltage 500 V
Rated impulse withstand voltage 6000 V
Electric current
Rated service breaking capacity Ics AC according IEC 60898-1 7.5 kA
Rated service breaking capacity Ics under 400V AC according IEC 60947-2 7.5 kA
Electric current / temperature
Rating current 30°C according to IEC 60947-2 11.46 A
Dimensions
Depth of installed product 70 mm
Height of installed product 83 mm
Width of installed product 35 mm
Power
Total power loss under IN 4.13 W
Endurance
Electric endurance in number of cycles 4000
Number of mechanical operations 20000
Capacity
Number of modules 2
Installation, mounting
Tightening torque 2,8Nm
Equipment
Can be accessorized Yes
Standards
Standard text EN 60898-1 ; IEC 60947-2
European directive WEEE concerned
Safety
Protection index IP IP20
Use conditions
Storage temperature -25/80 °C
Temperature
Operating temperature -25/70 °C
