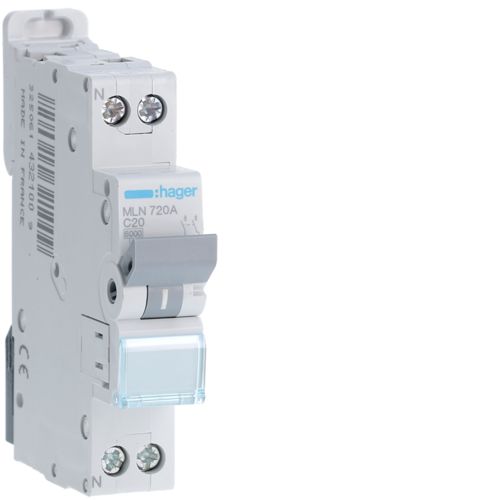

• Hager Circuit Breaker / Disjoncteur (C Curve) 1P+N - 20A
1 1

Hager Circuit Breaker / Disjoncteur (C Curve) 1P+N - 20A

Hager Circuit Breaker / Disjoncteur (C Curve) 1P+N - 20A

Rs 420.00
Rs 420.00
Sale Sold out
Tax included.

Type : MCB

SKU : HGMJN720

Collections : Circuit Breakers, Hager,

Availability : In Stock

Shipping & Returns

Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!

View full details

Hager Circuit Breaker / Disjoncteur (C Curve) 1P+N - 20A



Architecture
Neutral position left
Number of poles 2 P
Type of pole 1P+N
Curve C
Main electrical features
Rated operational voltage Ue 230 / 240 V
Frequency 50;60 Hz
Type of supply voltage AC
Voltage
Rated insulation voltage 500 V
Max operating voltage 253 V
Rated impulse withstand voltage 4000 V
Electric current
Rated service breaking capacity Ics AC according IEC 60898-1 6 kA
Electric current / temperature
Rating current 30°C 10 A
Dimensions
Depth of installed product 70 mm
Height of installed product 84.7 mm
Width of installed product 17.5 mm
Power
Total power loss under IN 2.6 W
Endurance
Electric endurance in number of cycles 1000
Number of mechanical operations 20000
Capacity
Number of modules 1
Installation, mounting
Tightening torque 1,9Nm
Connection
Type of connection with screw
Standards
Standard text EN 60898-1
European directive WEEE concerned
Safety
Protection index IP IP20
Use conditions
Storage temperature -25/80 °C
Temperature
Operating temperature -25/70 °C
