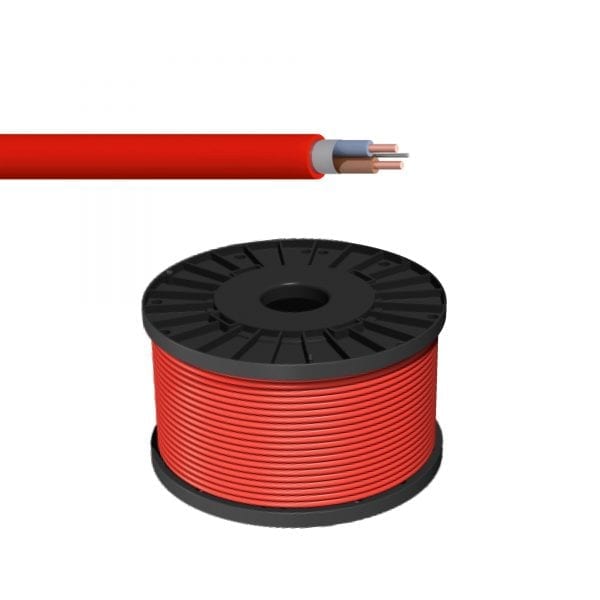

XP Fire Resistant Cable 2 Core 1.5 mm (Roll of 500m)

CABLE CONSTRUCTION

1 - Conductor

Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)

2 - Insulation

Cross-linked polymer compound in ceramic form (DIN 47100)

3 - Stranding

In layers

4 - Wrapping

Polyester tape, glass yarn tape

5 - Screen

Tinned copper earthing wire, Al/PET tape

6 - Outer Jacket

UV resistant halogen-free outer jacket. RAL 2008 (Orange)



TECHNICAL CHARACTERISTICS

Conductor Diameter	Conductor Resistance Ω/km (20 °C)	Insulation Resistance MΩ/km (500 V DC)	Mutual Capacitance nF/km (800 Hz)	Current Carrying Capacity A	Operating Voltage V DC	Test Voltage V (DC, 1 minute)
1.00 mm²	19.5	20	130	15	300	2000
1.50 mm²	13.3	20	140	18	300	2000
2.50 mm²	7.98	20	150	26	300	2000

Smoke Density Test

IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2

Corrosive Gas Test

IEC 60754-2, VDE 0482-267-2-3, BS EN 50267-2-3



Halogen-free Test

IEC 60754-1,

VDE 0482-267-2-1, EN 50267-2-1,

BS EN 50267-2-1



Flame Retardancy Test

IEC 60332-1-2,

VDE 0482-332-1-2, BS EN 60332-1-2



Flame Propagation Test

IEC 60332-3-24,

VDE 0482-332-3-24, BS EN 60332-3-24



Circuit Integrity Test (FE180)

IEC 60331-23



Circuit Integrity with Shock Test (PH120)

EN 50200, VDE 0482-200, BS EN 50200
