Warranty: 2 years

Legrand is the global specialist in electrical and digital infrastructures, offering high value added products and solutions for commercial, residential and industrial buildings.

Product characteristics

Standard luminaires

• Require normal lighting manual switching off in order to test emergency lighting

Non-maintained (NM)

• 90 lm - 3h (LEDs)

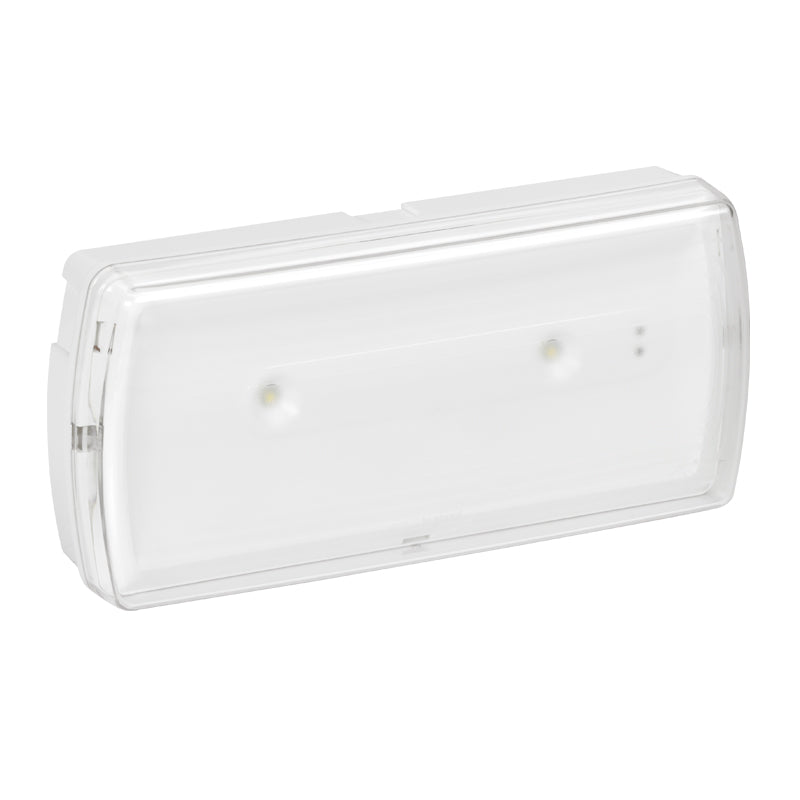

U21 LED - indoor self-contained emergency lighting luminaires LED

• LED maintained and Non-maintained units
• Certified to IEC and EN60598-2-22 standards
• High power LEDs
• IP 42 - IK 04. Duration: 1 and 3 hours. Ni-Cd or Ni-MH batteries
• Recharge time: 24 hours. Charge monitor with a green LED
• Power supply: 230 V~ ¬±10% - 50/60Hz - Class II
• High capacity screw terminals (2 x 2.5 mm¬≤)
• To install a full IP 65 solution, add IP 65 weatherproof box Cat.No 6 616 16
• Flush-mounting in dry partitions (ceiling and wall): add flush-mounting frame Cat.No 6 617 20. Flush-mounting in masonry (brick or concrete wall): add both flush-mounting box Cat.No 0 617 21 and flush-mounting frame Cat.No 6 617 20
• Can be equipped with metallic protection grids Cat.Nos 0 626 90/92
