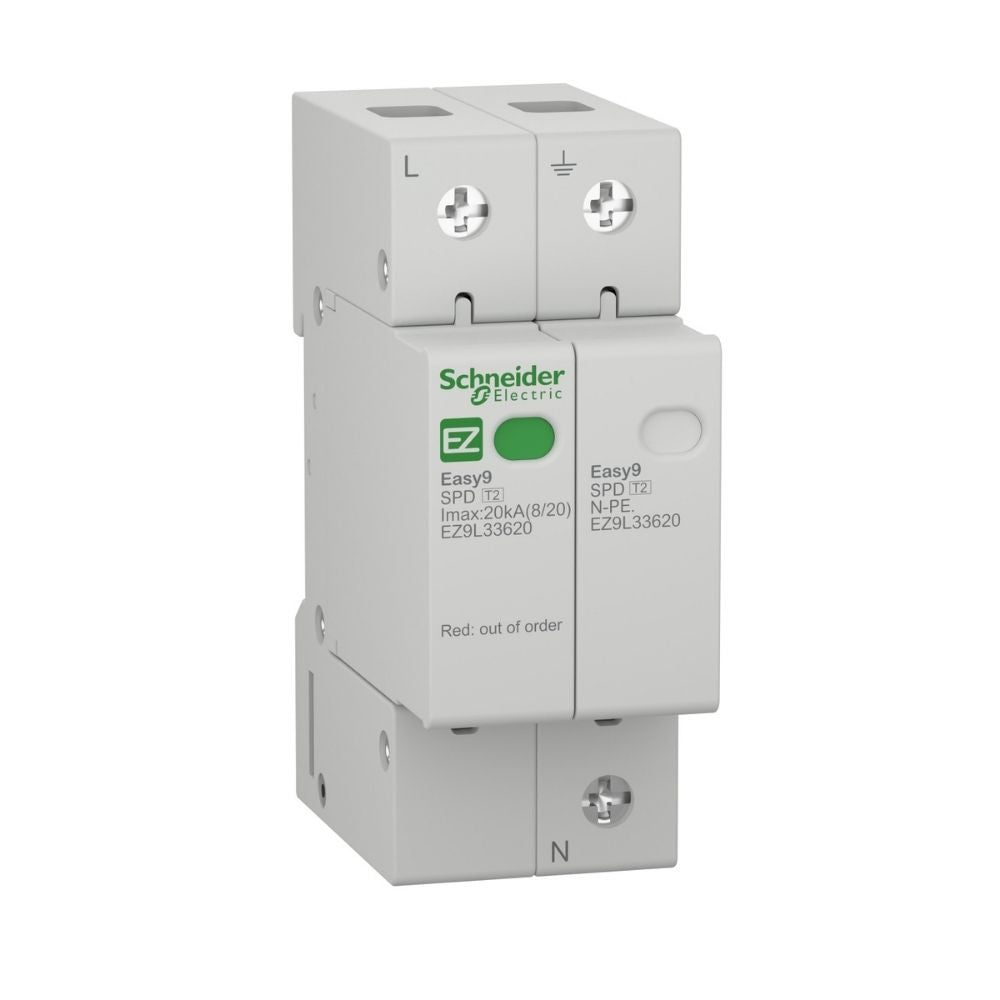

Schneider Easy9 Surge Arrester 1P + N 230 V - 20kA
Schneider Easy9 Surge Arrester 1P + N 230 V - 20kA
Regular price
Rs 1,995.00
Regular price
Sale price
Rs 1,995.00
Unit price
/
per
Tax included.
Type : SPDs
SKU : EZ9L33620
Collections : Circuit Breakers, Schneider Easy9,
Availability : Out Of Stock
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!
Share

Schneider Easy9 surge arrester - 1P + N - 230 V - 20000 A
Ref: EZ9L33620
Product range | Easy9 |
---|---|
Type of product or equipment | Lightning arrester |
Device Name | Easy9 SPD |
Poles | 1P + N |
Remote signaling | Without |
Type of surge arrester | Electricity distribution network |
Grounding diagram | TT TN-S |
Type of disconnector | Associated circuit breaker at 230 V |
Lightning arrester class | Type 2 |
---|---|
Lightning Arrester Technology | MOV + GDT |
Nominal discharge current | Common mode: 10 kA (N/PE) Common mode: 10 kA (L/N) |
Maximum discharge current | Differential mode: 20 kA L/N Differential mode: 20 kA N/PE |
[Uc] maximum continuous operating voltage | Differential mode: 275 VL/N Differential mode: 275 VN/PE |
[Up] maximum voltage protection level | Differential mode <1.3 kV type 2 L/N |
Local signaling | Green and red marker |
Installation mode | Snap-on |
Mounting bracket | DIN rail |
9mm pitch | 4 |
Height | 90 mm |
Width | 36 mm |
Depth | 66.2 mm |
Color | Grey (RAL 7035) |
Response time | <= 25 ns |
Connection mode | Cage type terminal (underside) 5��35 mm² rigid or flexible |
Tightening torque | 3.5 Nm |
Standards | IEC 61643-11 |
---|---|
Product Certifications | GOST EAC |
IP protection degree | IP20 on the terminal: |
Relative humidity | 5…90% |
Operating altitude | 2000 m |
Ambient air temperature in operation | -5…60 °C |
Ambient storage temperature | -5…70 °C |
