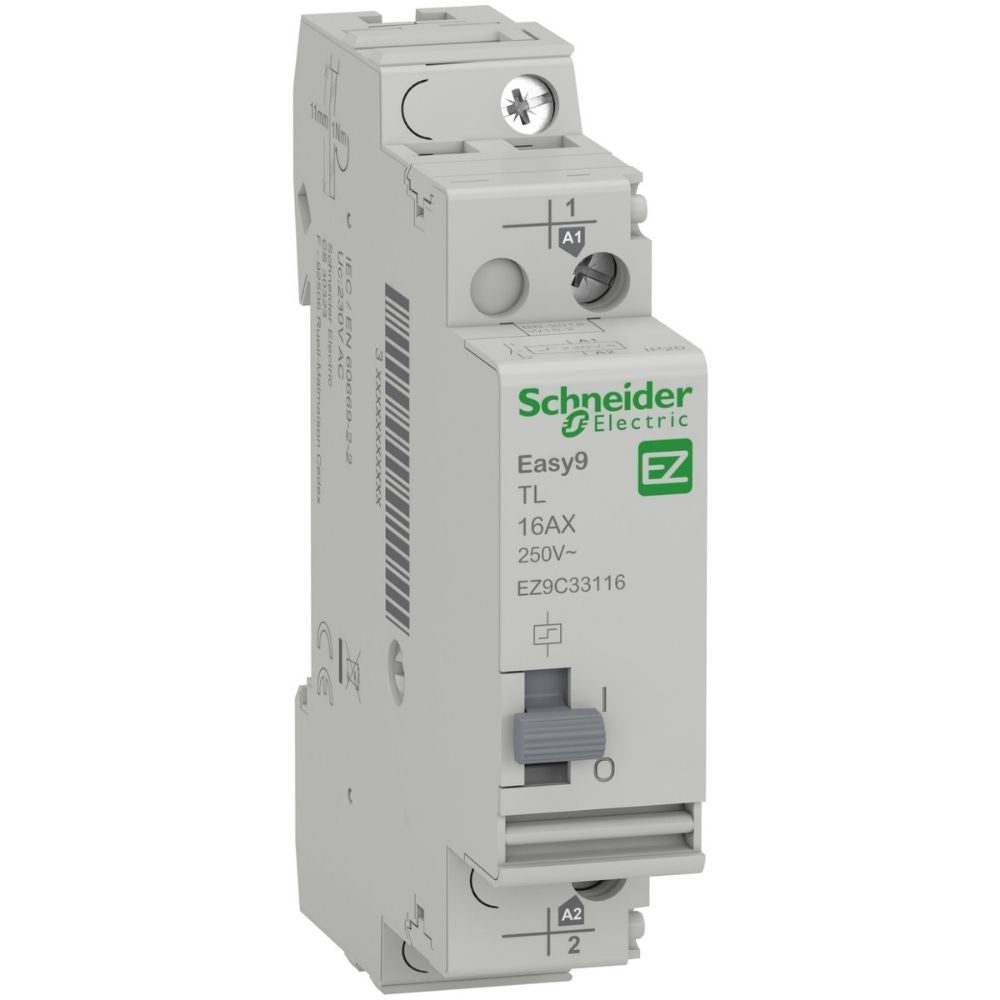

Schneider Easy9 Pulse Relay 1 Pole 1NO - 16A

Schneider Easy9 Pulse Relay 1 Pole 1NO - 16A

Regular price Rs 822.00
Regular price Sale price Rs 822.00
Sale Sold out
Tax included.

Type : Relays

SKU : EZ9C33116

Collections : Circuit Breakers, Schneider Easy9,

Availability : In Stock

Shipping & Returns

Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!

View full details

Schneider EASY9 TL Pulse Relay 16A 1NO 230 / 250VAC 50HZ

EZ9C33116

Specifications

main
Range Easy9
product name Easy9 TL
Product or component type impulse relay
pole description 1P
pole contact composition 1 NO
[In] rated current 16 A
Electrical network type That
control circuit voltage 230V 50Hz
more
power grid frequency 50/60Hz
[Ue] rated operating voltage 250 V AC 50 Hz
[Ui] rated insulation voltage 250V
control type Manual control
switching frequency 100 switching operations/day
pulse duration 50...200 ms
remote control type Button
local signaling ON/OFF indication
peak power in VA 19 VA
mounting method Clips
mounting bracket DIN rail
distribution busbar comb by compatibility categories not
Number of 9mm steps per row 2
height 81 mm
width 18 mm
depth 64 mm
net weight 105g
color Grey (RAL 7035)
mechanical durability 200000 cycles
electrical durability 200000 cycles
connections - terminals Control circuit, tunnel terminal type 1…2.5 mm² flexible
Power circuit, tunnel terminal type 1.5…4 mm² flexible
Control circuit, tunnel terminal type 1…2.5 mm² rigid
Power circuit, tunnel terminal type 1.5…6 mm² rigid
cable stripping length 11 mm
tightening torque 1 Nm
environment
standard EN/IEC 60669-2-2
product certifications EAC
quality labels WHAT IS
CMIM?
IP protection level IP20 according to SR EN 60529
IP40 according to SR EN 60529 (in housing)
IK protection level IK05
pollution level 2
overvoltage category III
relative humidity 95% at 55°C
ambient operating temperature -20…50 °C
ambient temperature for storage -40…70 °C
