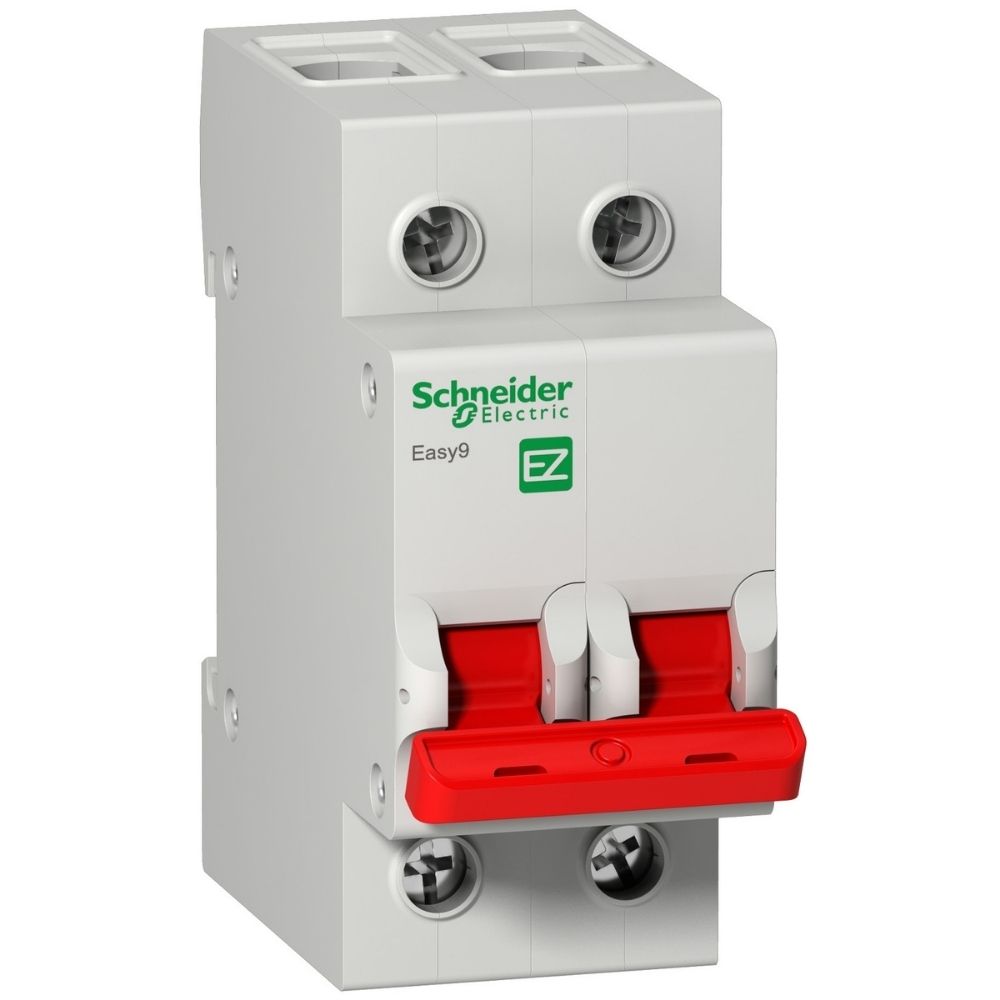

Schneider Easy9 Isolator 2P - 63A
Schneider Easy9 Isolator 2P - 63A
Type : Isolator
SKU : EZ9S16263
Collections : Circuit Breakers, Schneider Easy9,
Availability : In Stock
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!
Share

Easy9 switch disconnector - 2P - 63 A - 400 V
This Easy9 is a modular and reliable switch disconnector. This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. It has a position contact indication suitable for industrial isolation according to IEC 60947-3 standard. It is a 2P switch disconnector with 63A rated current. Electrical endurance goes up to 1500 cycles, and mechanical endurance goes up to 8500 cycles. The Ue rated operational voltage is 400VAC. The Ui rated insulation voltage is 500VAC. It has a Uimp rated impulse withstand voltage of 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The dimensions are (W) 36mm x (H) 81mm x (D) 66.5mm. The color is light grey (RAL7035). According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure. The pollution degree is NA. The operating temperature is -5°C to 55°C. The storage temperature is -5°C to 70 °C. This product complies with IEC 60947-3 standard.
Range | Easy9 |
---|---|
Product or component type | Switch |
Device short name | Easy9 switch |
Switch application | Distribution |
Poles | 2P |
Utilisation category | AC-22A |
Suitability for isolation | Yes |
[Ie] rated operational current | 63 A at 400 V 50/60 Hz |
---|---|
[Ue] rated operational voltage | 400 V AC 50/60 Hz |
[Icm] rated short-circuit making capacity | 0.945 kA |
[Icw] rated short-time withstand current | 0.756 kA during 1 s |
[Ui] rated insulation voltage | 500 V AC 50/60 Hz |
[Uimp] rated impulse withstand voltage | 4 kV |
Control type | Toggle |
Local signalling | ON/OFF indication |
Contact position indicator | Yes |
Mounting mode | Clip-on |
Mounting support | DIN rail |
9 mm pitches | 4 |
Height | 81 mm |
width | 36 mm |
Depth | 66.5 mm |
Colour | Grey |
Mechanical durability | 8500 cycles |
Electrical durability | 1500 cycles |
Connections - terminals | Tunnel type terminal (top or bottom) 1…35 mm² rigid Tunnel type terminal (top or bottom) 1…25 mm² flexible |
Tightening torque | 3.5 N.m |
Standards | IEC 60947-3 BS EN 60947-3 |
---|---|
Product certifications | CE |
IP degree of protection | IP20 conforming to IEC 60529 |
Tropicalisation | 2 |
Ambient air temperature for operation | -5…55 °C |
Ambient air temperature for storage | -5…70 °C |
