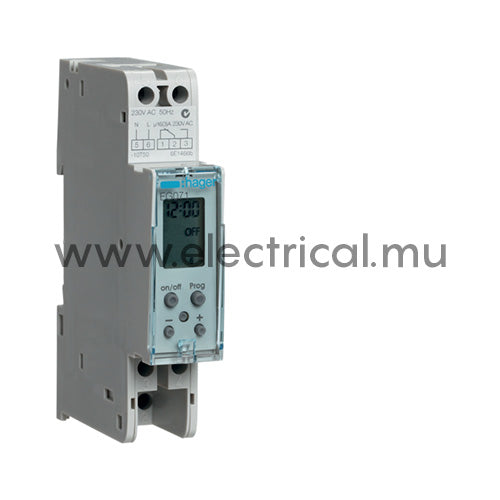

Description
| Fixing method | DIN rail |
|---|---|
| Functions | |
| Number of operating channels | 1 |
| Model | |
| Switch type | inverter |
| Controls & indicators | |
| Display / Display | LCD screen |
| Main electrical characteristics | |
| Rated operational voltage Ue | 230 V |
| Rated frequency | 50 Hz |
| Voltage | |
| Operating voltage | 230 V ~ |
| Dimensions | |
| Product installed depth | 64 mm |
| Product height installed | 92 mm |
| Product width installed | 18 mm |
| Width | 1 modules |
| Power | |
| Consumed strength | 1 VA |
| Total power dissipated at IN | 1 W |
| Power losses at full load | ≈ 1 W |
| Power dissipated by the control | 1 W |
| Measures | |
| Running precision | ± 1 s; day |
| Drums | |
| Power reserve [year (s)] | ≈ 3 a |
| Charging time for the power reserve in hours | 0 |
| Battery / Accumulator | with lithium button cell type: CR1632 |
| Management of incandescent bulbs | |
| 230 V incandescent and halogen bulbs | max. 1000 W |
| P max. with incandescent lamps | 1000 W |
| Installation, assembly | |
| Mounting type | DIN rail |
| Mounting method | for DIN rail mounting |
| Login | |
| Flexible cable connection section | 1; 4mm² |
| Rigid cable connection section | 1; 4mm² |
| Conductor cross section (flexible) | 1/4 mm² |
| Conductor cross section (rigid) | 1/4 mm² |
| Connection type | screw cage |
| Number of contacts | 1 |
| Contact type | 1 inverter |
| Connection type | with screw terminals |
| Contact | with potential-free switching contact |
| Configuration | |
| Summer / winter change | manual |
| Programming finesse | 1 min |
| Programmer type | electronic |
| Program cycles | Program cycles: 1 x 7 days |
| Programming cycle | 1x7J |
| Equipment | |
| Number of ways | 1 |
| Number of switching periods for on / off | 20 |
| Power reserve | 3 years |
| use | |
| Cycle | weekly |
| security | |
| IP protection class | IP20 |
| Terms of use | |
| Operating temperature | -10/50 ° C |
| Running precision | 1 |
| Storage temperature | -10/60 ° C |
| Storage / transport temperature | -10/60 ° C |
| Pictograms | |
| Classes / types of protection | SCHUTZKLASSE-2__PROTECTION-SYMBOL.EPS | IP20__PROTECTION-SYMBOL.EPS |
| Non-standard switching indicator symbols | RELAISSCHALTER-MIT-ZEITSCHALTUHR__WIRING-SYMBOL.EPS |
