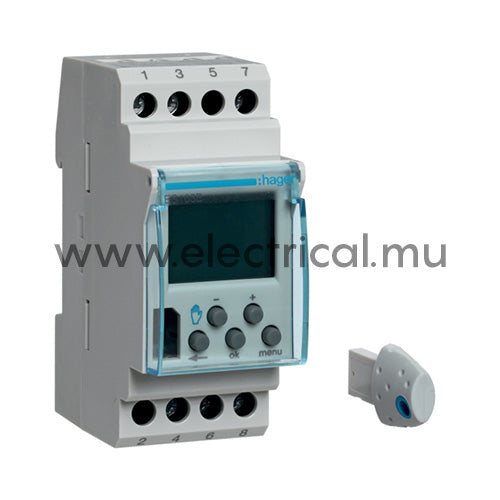

Digital Timer | Digital time switch weekly 1 channel Evolution


Price:
Sale priceRs 4,784.00 MUR Regular priceRs 5,072.00 MUR

Description

Architecture
Fixing mode Din-Rail
Functions
Function Presence simulation ; Keylock by means of blocking key ; with pulse function
Configuration
Switch mode change-over contact
Main electrical features
Rated operational voltage Ue 195 / 230 / 264 V
Frequency 50 Hz
Voltage
Supply voltage 230V AC
Dimensions
Depth of installed product 64 mm
Height of installed product 85 mm
Length 85 mm
Width of installed product 35 mm
Dimensions (W x H x D) 35/85/64 mm
Power
Power consumed 6 VA
Total power loss under IN 2 W
Power dissipation per coil 0.5 W
Capacity
Breaking capacity 16A 250V AC1
Capacity
Number of modules 2
Battery
Power reserve [years] ≈ 5 a
Incandescent bulbs control
Max. power with incandescent lamps 2300 W
Connection
Connection cross-sect. flexible conductor 1 ; 6mm²
Connection cross-sect. rigid cable 1,5 ; 10mm²
Type of connection with screw
Number of contacts 1
Type of contacts 1 changeover
Type of connection with screw terminals
Settings
Summer / Winter time change automatic
Shortest switching time 1 mn
Type of programming digital
Programming cycle 1X7D.
Equipment
Number of channels 1
Supply failure reserve 5 years
With holidays program Yes
DCF No
Use
Cycle weekly
Safety
Protection index IP IP20
Use conditions
Operating temperature -5/45 °C
Working accuracy 1,5
Storage temperature -20/70 °C
Temperature
Operating temperature -5/45 °C
