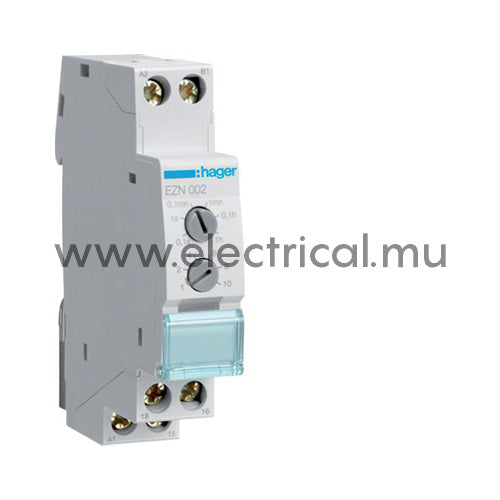

Description
| Architecture | |
|---|---|
| Fixing mode | DIN rail type O (symmetrical) |
| Functions | |
| Function | Functions: On delay, Off delay, single shot leading edge;single shot trailing edge, pulse shaping, flashing symmetrically, contact open;closed |
| Configuration | |
| Switch mode | change-over contact, usable as NC or NO |
| Main electrical features | |
| Frequency | 50;60 Hz |
| Voltage | |
| Supply voltage | 230V AC |
| Dimensions | |
| Depth of installed product | 58 mm |
| Height of installed product | 85 mm |
| Length | 64 mm |
| Width of installed product | 17.5 mm |
| Dimensions (W x H x D) | 17.5/85/58 mm |
| Power | |
| Power consumed | 15 VA |
| Power consumption (operation) | 15 VA |
| Total power loss under IN | 2 W |
| Power dissipation per coil | 0.5 W |
| Capacity | |
| Breaking capacity | 8A 230V AC1 |
| Capacity | |
| Number of modules | 1 |
| Incandescent bulbs control | |
| Max. power with incandescent lamps | 450 W |
| Installation, mounting | |
| Mounting type | din-Rail |
| Connection | |
| Connection cross-sect. flexible conductor | 1 ; 6mm² |
| Connection cross-sect. rigid cable | 1,5 ; 10mm² |
| Type of connection | with screw |
| Number of contacts | 1 |
| Type of contacts | 1 changeover |
| Type of connection | with screw terminals |
| Settings | |
| Time delayed range | 0.1 s... 10 h |
| Setting | with 2 potentiometers for setting of delay time |
| Safety | |
| Protection index IP | IP40 |
| Use conditions | |
| Operating temperature | -10/50 °C |
| Storage temperature | -40/70 °C |
| Temperature | |
| Operating temperature | -20/50 °C |
