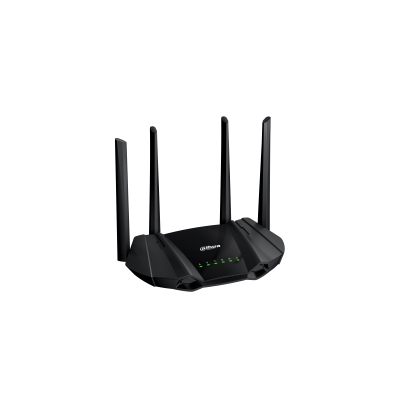

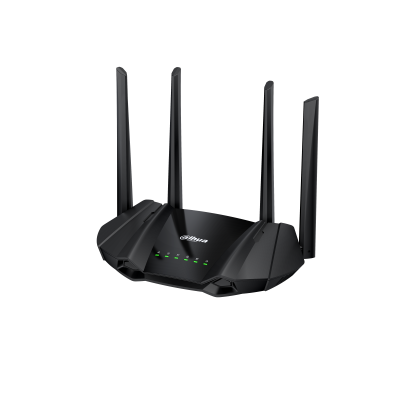

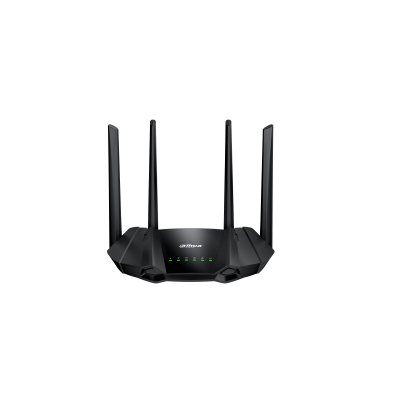

Dahua Wireless Router (AX15M)

OVERVIEW

6th Generation wireless technology for faster and more stable connections.
Supports up to 1.5 Gbps wireless speed (300 Mbps @ 2.4 GHz, 1201 Mbps @ 5 GHz).
Backward compatible with IEEE 802.11 b/g/n/ac/ax standards.
Beamforming for better coverage and signal strength.
OFDMA and 1024-QAM for efficient data transfer.
Bi-directional MU-MIMO for simultaneous device connections.
Wi-Fi Protected Access (WPA/WPA2/WPA3) security.
Guest Wi-Fi and parental control support.

HARDWARE

Physical Ports: 1 × 10/100/1000 Mbps WAN, 2 × 10/100/1000 Mbps LAN
Power Consumption: <10 W
Memory: 128 MB Flash + 128 MB RAM
Indicator Lights: WPS, 5GHz, 2.4GHz, LAN, Internet, PWR
Button: 1 × Reset/WPS button
Wireless Standards:

• 2.4 GHz: 802.11 b/g/n

• 5 GHz: 802.11 a/n/ac/ax

PERFORMANCE

Operating Frequency:

• 2.4 GHz: 2.412–2.484 GHz

• 5 GHz: 5.150–5.850 GHz

Wireless Transmission Rate:

• 2.4 GHz: 300 Mbps

• 5 GHz: 1201 Mbps

Channel Width: 20/40/80 MHz
Max Output Power (CE EIRP):

• ≤20 dBm @ 2.4 GHz

• ≤23 dBm @ 5.150–5.350 GHz

• ≤27 dBm @ 5.470–5.725 GHz

• ≤14 dBm @ 5.725–5.850 GHz

Antenna Gain: 2.4 GHz – 5 dBi (±0.5) / 5 GHz – 5 dBi (±0.5)
Connected Wireless Terminals: 16 (2.4 GHz), 32 (5 GHz)

FUNCTIONS

Encryption Modes: WPA-PSK, WPA2-PSK, WPA3-AES, WPA/WPA2-PSK, WPA2-PSK/WPA3-AES
Management & Log: NTP, Syslog
Firmware Update: Web or WiLynk App
OFDMA: Yes
MU-MIMO: 2 × 2
DHCP: Yes
NAT: Port mapping based
QoS: Yes
DDNS: Yes
Parental Controls: Yes
Equipment Management: Web or WiLynk App

GENERAL

Power Supply: 12 VDC, 1 A
Operating Temperature: 0 °C to 40 °C
Storage Temperature: –20 °C to +70 °C
Operating Humidity: 10%–90% RH (non-condensing)
Net Weight: 0.26 kg
Gross Weight: 0.56 kg
Product Dimensions: 215 × 119 × 173 mm
Packaging Dimensions: 321 × 257 × 76 mm
Static Protection: Air discharge 8 kV, contact discharge 4 kV
Lightning Protection: Common mode 2.5 kV, differential mode 0.5 kV
Installation: Desktop mount

PACKING LIST

• 1 × Device

• 1 × Power Adapter

• 1 × Network Cable

• 1 × Quick Start Guide

• 1 × Legal and Regulatory Information

• 1 × Frequency Band Information

• 1 × Warranty Card

• 1 × Product Information QR Code
