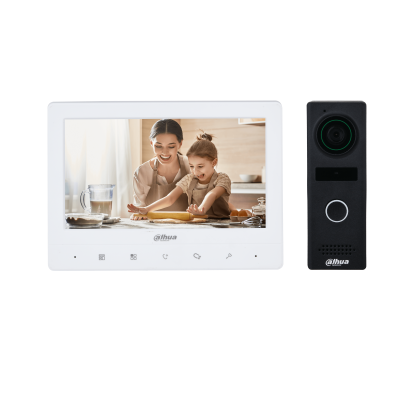

DAHUA VIDEO INTERCOM KIT (KTA03M)

DESCRIPTION

Video Intercom Kit - Outdoor Station & Indoor Monitor 7" - 4 Wire

• 7" TFT screen

• Video intercom function: Unlock, voice call, video call, volume adjustment, doorway monitoring

• System capacity: 2 door stations + 3 indoor monitors

• Multiple bell sounds

• Supports digital wide dynamic range (DWDR)

• Take snapshots

INDOOR MONITOR (DHI-VTH1020J)

SYSTEM
Button Type: Touch keypad

BASIC
Display: 7.0" TFT
Resolution: 1024 √ó 600
Indicator Light: 1 indicator light (Green: Power on)

FUNCTION
Communication Method: Analog

PERFORMANCE
Casing: PC + ABS

GENERAL
Color: White
Power Supply: DC 12V/2A
Power Adapter: Included
Installation: Surface mount
Certifications: CE/FCC
Accessory: Bracket (included)
Dimensions: 133.90 mm √ó 182.70 mm √ó 17.70 mm (5.27" √ó 7.19" √ó 0.70")
Operating Temperature: -10°C to +55°C (+14°F to +131°F)
Operating Humidity: 10%RH–95%RH
Power Consumption: ≤2W (standby), ≤5W (working)
Net Weight: 0.25 kg (0.55 lb)
Gross Weight: 0.48 kg (1.05 lb)

OUTDOOR STATION (DHI-VTO1000JM)

SYSTEM
Button Type: Mechanical

BASIC
Camera: 1/4" 1.3 MP CMOS
Field of View: Horizontal 70°, Vertical 40°
WDR: DWDR
Illuminator Type: Auto IR
Day/Night: ICR auto switch
Audio Input: 1 channel to the microphone (pickup distance 0.5 m)
Audio Output: 1 channel to the speaker
Indicator Light: 1 indicator light (Green: Power on)

FUNCTION
Communication Method: Analog
Unlock Mode: Remote unlock

PERFORMANCE
Casing: ADC12

PORT
Unlock Button: 1
Door Status Detection: 1

GENERAL
Color: Black
Power Supply: Powered by indoor monitor
Installation: Surface mount
Certifications: CE/FCC
Accessory: Rain cover (included)
Dimensions: 131.45 mm √ó 46.00 mm √ó 33.80 mm (5.18" √ó 1.81" √ó 1.33")
Protection Grade: IP66 (Apply silicon sealant to gaps between device and wall. Liquid sodium silicate recommended.)
Operating Temperature: -30°C to +60°C (-22°F to +140°F)
Operating Humidity: 10%RH–95%RH
Power Consumption: ≤1W (standby), ≤3W (working)
Net Weight: 0.18 kg (0.40 lb)
Gross Weight: 0.40 kg (0.84 lb)
