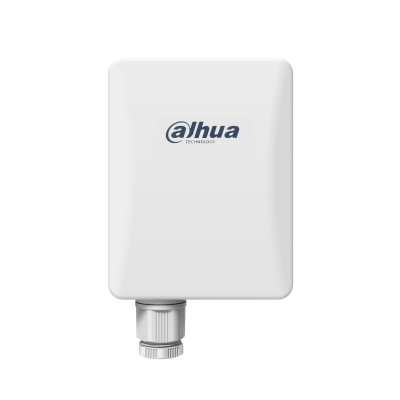

Dahua V-Radio Outdoor 11n 5G Wireless Bridge (PFWB5-30n)

OVERVIEW

Strong signal with enhanced antenna supporting up to 3 km point-to-point transmission distance.
Wide operating temperature range from –30 °C to +70 °C for reliable outdoor use.
Easy installation with wall mount and pole mount options.
High protection rating (IP65) suitable for harsh outdoor environments.
Strong broadband connection with up to 867 Mbps bandwidth ensuring smooth transmission.

HARDWARE

Sold in Pairs: Yes
Function Slot: 1 × RJ-45 10/100/1000 Base-T
Power Supply: 100 – 240 VAC
Power Consumption: Full load 4.5 W
Memory: DDR 64 MB
Indicator Lights: 1 × PWR, 1 × LAN, 4 × RSSI LEDs

PERFORMANCE

Wireless Standard: 5 GHz IEEE 802.11a/n
Operating Frequency: 5.150 – 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Wireless Transmission Rate:

• 802.11n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps

• 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
  Channel Width: 5/10/20/40 MHz
  Max Output Power:

• CE EIRP: ≤23 dBm@5150-5250 MHz; ≤23 dBm@5250-5350 MHz; ≤27 dBm@5470-5725 MHz; ≤14 dBm@5725-5850 MHz

• FCC Output Power: ≤24 dBm@5150-5350 MHz; ≤24 dBm@5470-5725 MHz; ≤30 dBm@5725-5850 MHz
  Antenna Direction Angle: Horizontal 30°, Vertical 30°
  Transmission Distance: 3000 m (9842.52 ft)
  PoE: PoE In 24 V/0.5 A; PoE Out NA

FUNCTIONS

Operating Modes: AP (WDS), WAP (TDMA2), WAP (TDMA3), Station (WDS/TDMA2/TDMA3), Wireless Client (ARPNAT)
Equipment Management: Web Interface
Encryption Modes: WPA/WPA2-Personal, WPA/WPA2-Enterprise
Security Mechanisms: ACL, User Isolation
OFDMA: Yes
MU-MIMO: 2 × 2
DFS: Yes
DHCP: Yes
Firmware Update: Web Update
Software Features: DHCP Server, SNMP Server, NTP Client, Router Advertisement Daemon, Ping Watchdog

GENERAL

Operating Temperature: –30 °C to +70 °C (–22 °F to +158 °F)
Storage Temperature: –40 °C to +85 °C (–40 °F to +185 °F)
Operating Humidity: 5%–95% RH (non-condensing)
Net Weight: 0.2 kg (0.44 lb)
Gross Weight: 0.4 kg (0.88 lb)
Product Dimensions: 130 × 97 × 37 mm (5.11" × 3.81" × 1.45")
Packaging Dimensions: 174 × 135 × 80 mm (6.85" × 5.31" × 3.14")
Protection: IP66
Installation: Bracket Mount
Certifications: CE, FCC

PACKING LIST

• 1 × Device

• 2 × Dowel Pin

• 1 × Pole Mount Bracket

• 1 × Power Cord

• 1 × 24 V PoE Power Adapter

• 1 × Quick Start Guide
