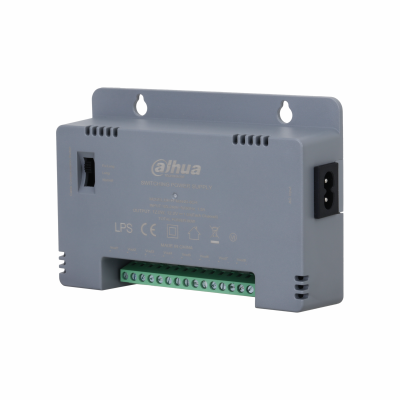

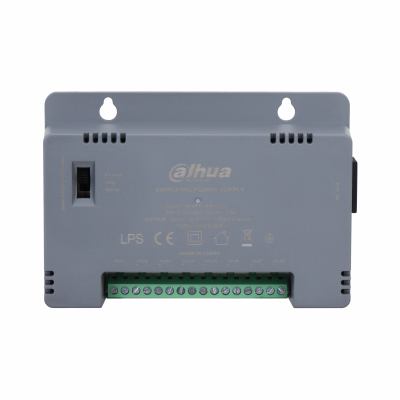

Dahua PFM344D-8CH-EN Switching Power Supply (8 Channels, 12V, 60W):

OVERVIEW

  • Switching power supply with 8 output channels, capable of powering multiple devices simultaneously

  • Adjustable output voltage: 3 levels for compatibility with various devices

  • Wall-mountable, compact and durable design

  • Built-in protections for overcurrent, overvoltage, short circuits, and surge

  • Efficiency: ‚â•88%, CE certified, V-0 fireproof

ELECTRICAL SPECIFICATIONS

Parameter Normal Long Ex-Long
Output Voltage 12 VDC 13.5 VDC 15 VDC
Rated Output Current 5 A 4.5 A 4 A
Output Power (per channel) 12 W 12 W 12 W
Total Power 60 W 60 W 60 W
Idle Power Consumption ≤0.21 W
Efficiency ‚â•88%

  • Input Voltage: 100‚Äì240 VAC

PROTECTION

  • Overcurrent, short-circuit, and overvoltage protection

  • Surge Protection: Common mode ¬±4 kV, Differential mode ¬±2 kV

  • Static Protection: Air discharge ¬±8 kV, Contact discharge ¬±6 kV

PORTS & CONNECTIONS

  • Input: 2-core female C8 connector, with European standard cable

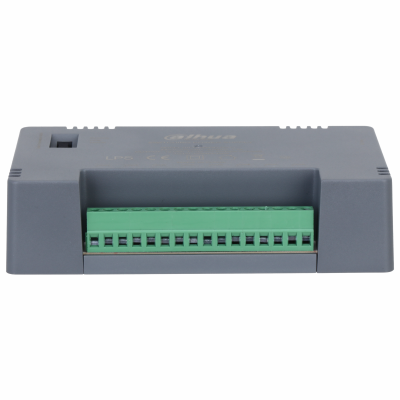

  • Output: 8-channel output terminals

PHYSICAL

  • Installation: Wall mount

  • Dimensions: 140.1 √ó 94.5 √ó 34.2 mm (L √ó W √ó H)

  • Color: Gray

  • Net Weight: 0.27 kg

  • Gross Weight: 0.35 kg

  • Input Cable Length: 1000 mm (39.37")

This power supply is ideal for small to medium Dahua camera setups, providing reliable 12V power to up to 8 devices simultaneously, with adjustable voltage options for extended cable runs.
