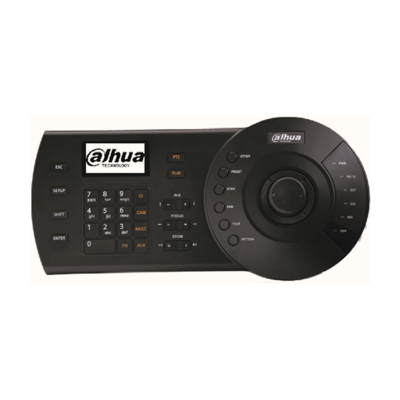

Dahua Network Keyboard (NKB1000-E)
Professional control keyboard for Dahua PTZ cameras, DVRs, and NVR systems.

KEY FEATURES

• Controls Dahua High Speed Dome, Standalone DVR, and Network Video Server

• Supports RS485, RS422 (reserved), USB, RS232, and Network connections

• 3D joystick for PTZ functions

• Preset position, auto scan, auto pan, auto tour, and pattern auxiliary functions

• On-screen menu and user operation tips

• Connects to SmartPSS or DSS platform via USB

MODEL

Model: NKB1000-E

GENERAL

Keyboard Panel: Electromechanical
Joystick: 3-axis vector-solving with twisting, return-to-center head
Keyboard Connectors: RJ-45, RS232, RS485, RS422 (reserved), USB
Communication: Direct Mode / Network Mode

DIRECT MODE
Interface: 1 RS232 / 2 RS485
DVR Protocol: DH-2
Dome Protocol: DH-SD1 / PELCO-D / PELCO-P

NETWORK MODE
Interface: RJ45
Supports DVR / Network Dome via IP Address, Port, and Protocol

DISPLAY
LCD: 75.2 mm × 33.85 mm

USERS & DEVICES
Maximum Users: 64 (including “admin”)
Max RS485 Addresses per User: 256
Max PTZ (IPC) Devices over Network per User: 2048

ENVIRONMENTAL

Power Supply: DC 12V/2A (adapter input 100V–240V, 50/60Hz)
Power Consumption: 5W
Operating Temperature: -10°C to +55°C
Operating Humidity: 10%–90%
Atmospheric Pressure: 86 kPa–106 kPa

DIMENSIONS & WEIGHT

Dimensions: 330 × 139 × 53 mm (W × D × H)
Height (including joystick): 103 mm
Weight: 1.3 kg (including package)
