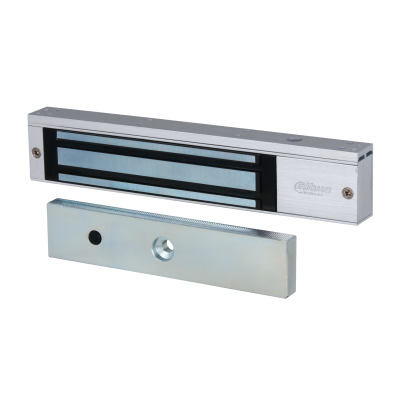

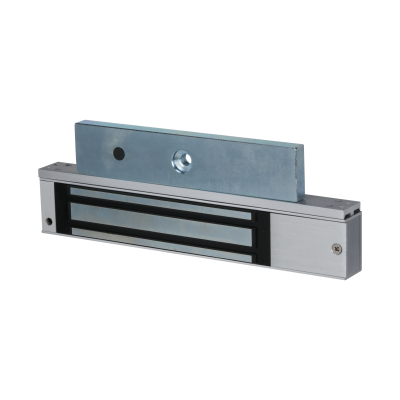

DAHUA MAGNETIC LOCK 280KG (ASF280A-V1)

DESCRIPTION
Built of aluminum alloy and treated with surface oxidation, suitable for indoor use.
Embedded reverse current protection equipment.
Built with anti-wear materials and an anti-residual magnetism design.
Displays status with LED indicator.
5-wire design supports door detector signal feedback.
Long service life — tested for up to 40,000 power-on cycles.
Relies completely on electromagnetic force, free from mechanical failure.
Automatically unlocks when powered off.
Suitable for wooden, glass, metal, and fireproof doors.
Compatible with all Dahua and other mainstream access control devices.

BASIC
Product Type: Magnetic Lock
Casing Material: Aluminum Alloy
Surface Treatment: Electroplating and Drawing
Suction Plate Dimensions: 180 √ó 38 √ó 13 mm

FUNCTION
Signal Output: COM/NO/NC
Door Status Detection: 1, Relay
Security: Open While Power Off

PERFORMANCE
Max Tension: 280 kg (Tensile Force)
Unlock Angle: 90°

GENERAL
Applicable Door Thickness: 5 cm–15 cm
Power Adapter: Optional
Power Supply: 12 VDC, 510 mA
Power Consumption: ≤ 6.1 W (working)
Lifespan: 40,000 operations
Product Dimensions: 250 √ó 48.6 √ó 26 mm
Packaging Dimensions: 400 √ó 300 √ó 160 mm
Operating Temperature: –20°C to +55°C
Operating Humidity: 5%–95% RH (non-condensing)
Operating Environment: Indoor
Gross Weight: 2.1 kg
Accessories: DHI-ASF280ZL-V1, DHI-ASF280L-V1, DHI-ASF280U-V1
Installation: Surface Mount
Anti-Corrosion Level: Basic Protection
