DAHUA IP Video Intercom Kit (KTP03)

Overview

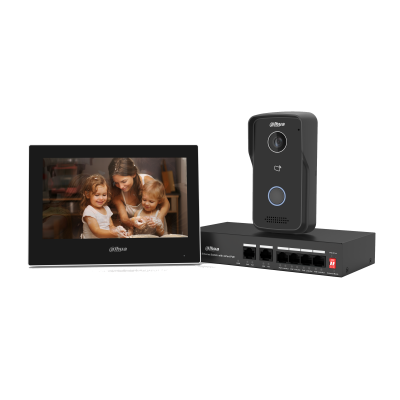

The KTP03 kit includes:

1. Outdoor IP Villa Door Station (DHI-VTO2111D-P-S3)

2. 7" Indoor Monitor (DHI-VTH2621G-P)

3. PoE Switch (DH-PFS3006-4ET-36)

It is designed for villas or apartments, supports card/fingerprint/password unlock, app control, and full digital two-way communication.

Outdoor Station (DHI-VTO2111D-P-S3)

• Camera: 1/2.8" 2 MP CMOS, DWDR, low-light/IR

• Field of View: H: 107¬∞ | V: 60¬∞ | D: 122¬∞

• Video: H.264/H.265; Main stream: 720p, WVGA, D1, CIF; Sub stream: 1080p, WVGA, D1, QVGA, CIF

• Audio: Two-way voice; built-in speaker; echo suppression & digital noise reduction

• Unlock Methods: IC card, app, indoor monitor

• Card Capacity: 10,000 cards

• Ports: RS-485 (1), 12 V 200 mA power output (1), exit button (1), door status detection (1), lock control (1)

• Protection: IP65 (requires silicone sealant), IK04

• Power: 12 VDC, 1 A or PoE

• Temperature Range: ‚Äì30 ¬∞C to +60 ¬∞C

• Dimensions: 135.1 √ó 70.6 √ó 34.6 mm

• Weight: 326 g

Indoor Monitor (DHI-VTH2621G-P)

• Screen: 7" TFT capacitive touch, 1024 √ó 600

• Audio: Two-way talk, echo suppression

• Video: H.264/H.265; supports SD card video storage (up to 64 GB)

• Alarm Inputs/Outputs: 6 alarm inputs, 1 output

• Extensions: Villa: 9 | Apartment: 4

• Unlock Methods: Card, app, indoor monitor

• Power: 12 VDC, 1 A or PoE

• Temperature Range: ‚Äì10 ¬∞C to +55 ¬∞C

• Dimensions: 189.6 √ó 134.6 √ó 26.0 mm

• Weight: 575 g

PoE Switch (DH-PFS3006-4ET-36)

• Ports: 4 √ó PoE (10/100 Mbps), 2 uplink ports (10/100 Mbps)

• Appearance: Black

• Dimensions: 194 √ó 108.1 √ó 35 mm

• Weight: 0.56 kg

Key Features

• Two-way audio communication between app, door station, and indoor monitor

• Supports 10,000 cards and multiple locks

• Remote unlock via app

• IP65-rated outdoor durability

• Compatible with H.265/H.264 video streams for storage and transmission

• PoE support for easy installation
