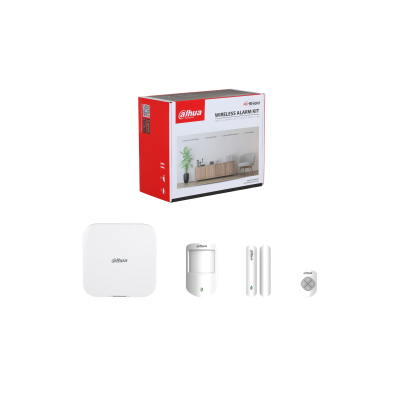

DAHUA WIRELESS ALARM KIT (ART-ARC3800H-03-W2 868MHz)

DESCRIPTION
Wireless Alarm Kit (Hub 2, Wi-Fi, LAN)

Supports alarm video verification through integration of the IPC with the hub.
Images can be remotely and quickly transferred from the PIR-Cam to the device.
Supports wired and AP network configuration methods, making it easier to add the hub to apps and switch to the hub’s network.
Supports multi-network redundancy for Ethernet and Wi-Fi to ensure the network remains stable and reliable.
Supports two-way communication and frequency hopping for stable communication with wireless peripherals.
Features cloud updates and allows remote updates of the device and wireless peripherals via the mobile app.
Offers a dual backup system with auto recovery when an update fails.

PORT

Wireless Zone
Hub: 150 channels for wireless peripherals (6 sirens, 64 PIR cameras – only 8 indoor PIR cameras, 64 keyfobs, 8 keypads, and 4 repeaters).

Network Mode
Hub: Ethernet and Wi-Fi

Network Port
Hub: 1 RJ-45, 10/100 Mbps Ethernet port

Storage Battery
Hub: Built-in 4,750 mAh rechargeable lithium battery

VIDEO & AUDIO

Video Input
Hub: 8-channel IPC, supports alarm video upload only

Audio Output
Hub: 1 channel

Volume Control
Hub: Yes

Voice Broadcast
Hub: Local speaker

FUNCTIONS

Indicator Light
Hub: Indicates status of alarms, arming/disarming, network connection, and device failures.
Keyfob: 1 dual-color status indicator (Green = normal, Red = abnormal)
Door Detector: 1 green alarm indicator
PIR Detector: 1 green alarm indicator

Button
Hub: Reset button, voltage button, and AP switch button
Keyfob: 4 buttons (Home, Away, Disarm, SOS)
Door Detector: 1 power switch
PIR Detector: 1 power switch

Video Linkage
Hub: Yes

Offline Cache
Hub: Stores up to 50 alarm messages

Arm and Disarm
App, Keypad, Remote Control, Card, Scheduled Arming/Disarming

Remote Update
All: Cloud update

Low Battery Detection
All: Yes

Tamper Protection
Hub: Yes
Door Detector: Yes
PIR Detector: Yes

User Management
Hub: 33 app users (31 general, 1 admin, 1 installer) and 32 keypad users

Logs
Hub: Up to 5,000 entries

Measuring Range (Temperature)
Door Detector: –15°C to +65°C (indoor)
PIR Detector: –15°C to +65°C (indoor)

Transmission Protocol
Hub: SIA, SoftGuard

TECHNICAL

Sensors
Door Detector: Reed switch
PIR Detector: Dual-element low-noise PIR sensor

Detection Mode
PIR Detector: PIR

Sensitivity
PIR Detector: 3 levels adjustable

Detection Range
PIR Detector: 12 m (90°) at 2.2 m installation height

Detection Speed
PIR Detector: 0.3–3 m/s

Movement Distance
Door Detector: < 40 mm

Pet Immunity
PIR Detector: ≤ 18 kg

White Light Resistance
PIR Detector: 2000 lx

Temperature Compensation
PIR Detector: Yes (no attenuation in high temperatures)

Scenario
Door Detector: Non-metal doors

WIRELESS

Frequency
All: 868.0–868.6 MHz

Transmitter Power (EIRP)
All: ≤ 25 mW

Communication Mechanism
All: Two-way

Communication Distance
Hub: Up to 2000 m (open space)
Keyfob: Up to 900 m
Door Detector: Up to 1200 m
PIR Detector: Up to 1600 m

Encryption
All: AES128

Frequency Hopping
All: Yes

GENERAL

Language
Hub: English

Power Supply
Hub: 100–240 VAC, 50/60 Hz
Keyfob: CR2032 battery
Door Detector: CR123A battery
PIR Detector: CR123A battery

Battery Life
Hub: Up to 12 hours backup on full charge
Keyfob: 3 years
Door Detector: 4 years
PIR Detector: 4 years

Power Consumption
Hub: 220 VAC 80 mA (Max), 40 mA (Standby)
Keyfob: 40 mA (Max), 0.5 µA (Standby)
Door Detector: 42 mA (Max), 29 µA (Standby)
PIR Detector: 44 mA (Max), 34 µA (Standby)

Operating Temperature
All: –10°C to +55°C (indoor)

Operating Humidity
All: 10%–90% RH

Dimensions (L √ó W √ó H)
Hub: 174.8 √ó 174.8 √ó 38.3 mm
Keyfob: 60.0 √ó 39.5 √ó 15.0 mm
Door Detector: 100.2 √ó 20.8 √ó 20.3 mm
PIR Detector: 104.0 √ó 60.0 √ó 50.0 mm

Weight
Hub: 510 g
Keyfob: 20 g
Door Detector: 70 g
PIR Detector: 100 g
Kit Gross Weight: 1.46 kg

INSTALLATION
Hub: Wall or desktop mount
Door Detector: Bracket mount
PIR Detector: Wall mount
Casing Material: PC + ABS

CERTIFICATIONS
Hub: CE, EN50131 series, Security Grade 2, Environmental Class II, ATS category SP2/DP2
Keyfob: CE, EN50131 series, Security Grade 2, Environmental Class II
Door Detector: CE, EN50131 series, Security Grade 2, Environmental Class II
PIR Detector: CE, EN50131 series, Security Grade 2, Environmental Class II

Anti-Corrosion Level
Basic Protection

Storage Temperature
All: –10°C to +55°C

Storage Humidity
All: 10%–90% RH

Packaging Dimensions
Kit: 270 √ó 218 √ó 122 mm

WI-FI
Wi-Fi Standard: IEEE 802.11b/g/n
Wi-Fi Frequency: 2400–2483.5 MHz
Wi-Fi Power: ≤ 20 dBm
