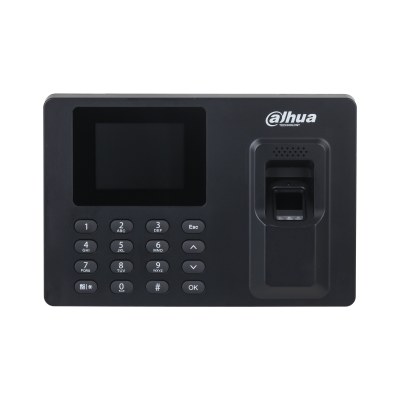

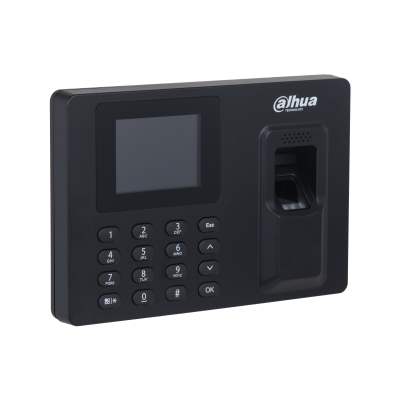

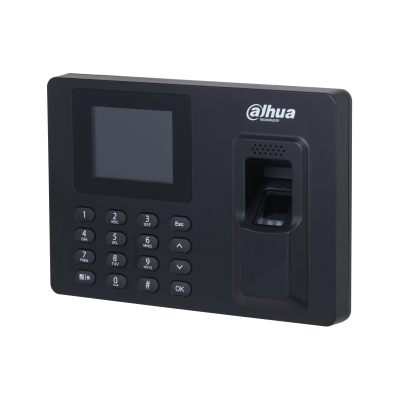

DAHUA FINGERPRINT ATTENDANCE STANDALONE (ASA1222E-S)

OVERVIEW

• Built with 16 mechanical buttons, a 2.4-inch LCD display, and a user-friendly interface.

• Personnel can clock in and out using fingerprint, password, and other methods.

• Supports up to 1,000 users, 2,000 fingerprints, 1,000 passwords, and 100,000 attendance records.

• User and department shifts can be arranged weekly or monthly, with 2 working periods and 1 overtime period.

• Provides scheduled reminders with sound notifications.

• Imports and exports data via USB flash drive, including personnel, fingerprints, attendance, and configuration data.

• Supports voice prompts.

• Sends attendance records to the SmartPSS Lite client over the network.

• Supports firmware updates via Internet and USB flash drive.

SYSTEM

Main Processor: Embedded Processor
Button Type: Mechanical
Network Protocol: UDP / TCP / IPv4

BASIC

Display Screen: 2.4" TFT
Product Type: Attendance Standalone
Screen Type: Non-touchscreen
Screen Resolution: 320 × 240
Voice Prompt: Yes
Casing Material: PC + ABS

FUNCTION

Network Update: Yes
Real-time Monitoring: Yes
Auto Registration: Yes

PERFORMANCE

Fingerprint Sensor Type: Optical fingerprint
Fingerprint Verification Mode: 1:N
Fingerprint Recognition Time: 2 s

ATTENDANCE

Export Attendance Record: USB flash drive export
Attendance Check Mode: Free attendance / Fixed attendance
Attendance Statistics: Yes
Department Setting: Yes
Schedule Setting: Yes

USER

User (Card) Type: General user

CAPACITY

User Capacity: 1,000
Fingerprint Capacity: 2,000
Password Capacity: 1,000
Record Capacity: 100,000

PORT

USB: 1 × USB 2.0 port
Network Port: 1 × RJ-45

GENERAL

Power Adapter: Included
Power Supply: 5 VDC, 1 A
Power Consumption: ≤ 5 W (Working)
Product Dimensions: 175.5 mm × 120.0 mm × 30.0 mm (6.91" × 4.72" × 1.18")
Packaging Dimensions:

• Inner Carton: 248 mm × 143 mm × 66 mm (9.76" × 5.63" × 2.60")

• Protection Box: 351 mm × 261 mm × 304 mm (13.82" × 10.28" × 11.97")
  Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
  Operating Humidity: 5%–95% RH
  Operating Environment: Indoor
  Gross Weight: 0.37 kg (0.82 lb)
  Installation: Surface mount
  Certifications: CE / FCC
  Storage Temperature: –20 °C to +60 °C (–22 °F to +140 °F)
