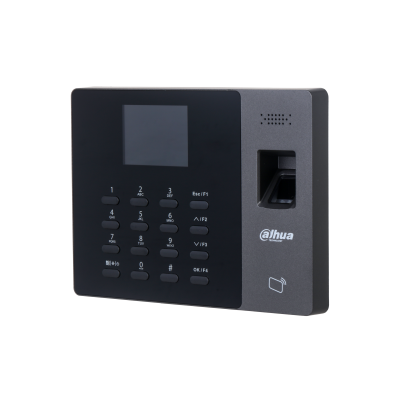

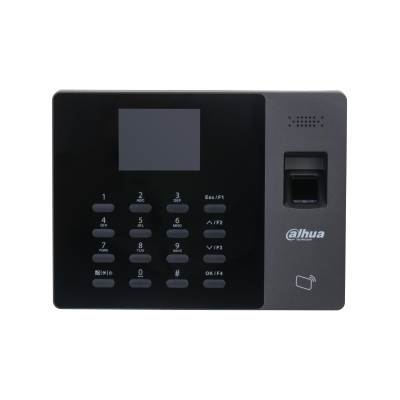

DAHUA CARD SWIPING, PASSWORD, FINGERPRINT ATTENDANCE STANDALONE (ASA2212GL)

OVERVIEW

• Built with PC and ABS material, featuring a 2.4" LCD with 240 (H) × 320 (V) resolution.

• Built-in rechargeable lithium battery provides up to 3 hours of use per full charge.

• Convenient configuration via webpage, accessible on both computers and mobile devices.

• Attendance can be marked through card (IC), password, and fingerprint.

• Supports up to 3,000 users, 3,000 cards, 3,000 fingerprints, and 100,000 attendance records.

• Configures up to 20 departments and 24 shifts directly on the device.

• Supports importing and exporting personnel, cards, shifts, and schedules via USB flash drive.

SYSTEM

Main Processor: Embedded Processor
Button Type: Mechanical
Network Protocol: IPv4 / UDP / P2P / IPv6 / TCP
OSDP Protocol: Yes
Input Method: T9
Interoperability: ONVIF / CGI
SDK: Yes
API: Yes

BASIC

Display Screen: 2.4" LCD
Product Type: Attendance Standalone
Screen Type: Non-touchscreen
Screen Resolution: 240 (H) × 320 (V)
Voice Prompt: Yes
Power On/Off Button: 1
Casing Material: PC + ABS

RFID

Card Type: IC card
Modulation Type: ASK
Frequency Range: 13.56 MHz
Max. Transmission Power: 42 dBuA/m @ 10 m

FUNCTION

Period List: 128 periods
Holiday Period: 128 periods
Network Update: Yes
Restricted List / Trusted List: Yes
Auto Registration: Yes

PERFORMANCE

Response Time: 0.2 s
Card Reading Distance: 3 cm (1.18")
Fingerprint Sensor Type: Optical
Fingerprint Verification Mode: 1:N
Fingerprint Comparison Time: 1.5 s
Fingerprint Recognition Time: 0.5 s

ATTENDANCE

Export Attendance Record: USB flash drive export
Attendance Check Mode: Auto / Manual / Fixed Mode
Attendance Statistics: Yes
Department Setting: 20 departments
Schedule Setting: 24 shifts
Ring Tone: Yes

USER

User (Card) Type: General, VIP, Patrol, Guest, Blocklist, Custom 1, Custom 2, Others

CAPACITY

User Capacity: 3,000
Fingerprint Capacity: 3,000
Card Capacity: 3,000
Password Capacity: 3,000
Record Capacity: 100,000

PORT

USB: 1 × USB 2.0 port
Network Port: 1 × RJ-45 10/100 Mbps self-adaptive Ethernet
Exit Button: 1 channel
Door Status Detection: 1 channel
Lock Control: 1 channel

ALARM

Duress Alarm: Yes
Door Sensor Timeout: Yes
Intrusion: Yes
Illegal Card Exceeding Threshold: Yes

GENERAL

Power Adapter: Included
Power Supply: 12 VDC, 1 A; Lithium battery
Power Consumption: ≤6 W
Product Dimensions: 181.6 mm × 135.6 mm × 32.7 mm (7.15" × 5.34" × 1.29")
Packaging Dimensions:

• Inner Box: 298 mm × 162 mm × 71 mm (11.73" × 6.38" × 2.8")

• Protective Case: 383 mm × 313 mm × 349 mm (15.08" × 12.32" × 13.74")
  Operating Temperature: –10°C to +55°C (+14°F to +131°F)
  Operating Humidity: 5%–95% RH
  Operating Environment: Indoor
  Gross Weight: 0.61 kg (1.34 lb)
  Installation: Surface mount
  Certifications: THIS
  Storage Temperature: –20°C to +70°C (–4°F to +158°F)
  Storage Humidity: 30%–75% RH
