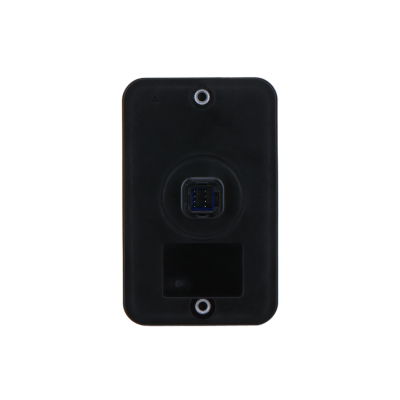

Dahua 79 GHz Anti-smashing Radar (ITSJC-2303)

Advanced radar for barrier protection with adjustable detection, online commissioning, and interference filtering.

Suitable for advertising barriers, fence arm barriers, straight arm barriers, and folding arm barriers
Adjustable detection distance and width
Supports serial port and mobile app updates (Wi-Fi)
Automatically reads surroundings for complex scenes
Connects to cameras via RS-485

Basic

Emission Frequency
77 GHz–81 GHz

Emission Power
≤ 10 mW

Beam Width
Vertical: ±10°
Horizontal: ±36°

Response Time
50 ms

Detection Region
0.3 m–6 m (adjustable)

Anti-smashing Region
0 m–2 m (adjustable)

Function

Detection Target
Human, vehicle

Online Commissioning
Yes, via serial port or mobile app (Wi-Fi)

Update
Yes, via serial port or mobile app (Wi-Fi)

Port

RS-485
1

I/O
2 (1 update input, 1 relay output)

General

Operating Voltage
9 V–12 V DC

Operating Current
< 0.25 A

Power Consumption
< 3 W

Operating Temperature
–40 °C to +85 °C

Protection Grade
IP66

Product Dimensions
96 × 60 × 16.4 mm (L × W × H)

Net Weight
70 g ± 10 g

Gross Weight
220 g ± 20 g

Installation
Case side mount
