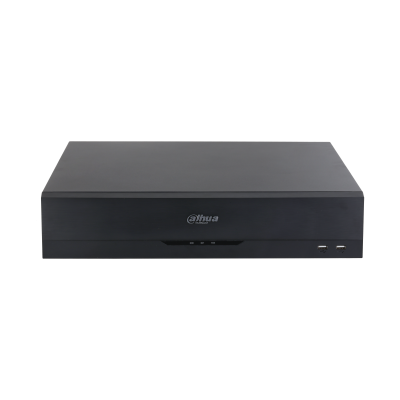

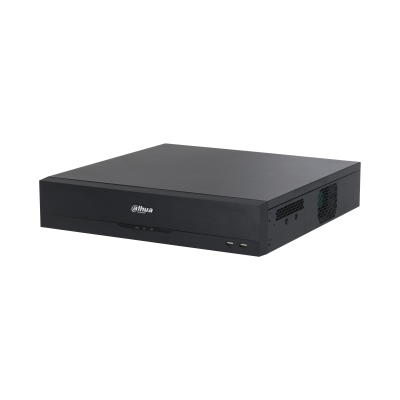

Dahua 64-Channel NVR (NVR5864-EI):

OVERVIEW

• Model: NVR5864-EI

• Channels: 64 IP cameras

• HDD Support: 8 SATA drives (up to 20 TB each)

• RAID Support: 0/1/5/6/10

• Rackable, no built-in PoE

• Supports Smart H.265+, H.265, H.264+, H.264, MJPEG

• AI capabilities: face detection & recognition, perimeter protection, SMD Plus, video metadata, ANPR, people counting, heat map

VIDEO & DECODING

• Max decoding: 32 √ó 1080p@30 fps or 32 √ó 2MP@30 fps

• Max bandwidth: 384 Mbps incoming/recording/outgoing

• Supports IP cameras up to 32 MP

• Multi-screen display: main screen up to 64 channels

• Video output: 2 HDMI, 2 VGA

• HDMI resolutions: up to 3840 √ó 2160 (4K)

• Decoding with AI enabled: reduced bandwidth, e.g., 24 channels 1080p@30 fps

AI CAPABILITIES

• Face Detection & Recognition:

  • Recorder: 2 channels FD, 12 images/s each

  • Camera: 16 channels FD, FR support

  • Face databases: up to 20 databases, 20,000 images

• Perimeter Protection:

  • Recorder: 4 channels

  • Camera: 16 channels

• SMD Plus: 8 channels (recorder), 16 channels (camera)

• Video Metadata: human, motor vehicles, non-motor vehicles (8 channels)

• ANPR: up to 8 channels, 20,000 plate numbers

NETWORK & STORAGE

• Network Ports: 2 √ó 1 Gbps RJ-45

• Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, FTP, P2P, iSCSI

• HDD: 8 √ó SATA (up to 20 TB each), 1 √ó eSATA

• RAID: 0/1/5/6/10

• Backup: USB device or network

AUDIO & ALARMS

• Audio Input: 1-channel RCA

• Audio Output: 2-channel RCA

• Alarm Input: 16 channels

• Alarm Output: 8 channels (1 √ó 12 V, 1 A)

• Alarm functions: motion detection, privacy masking, camera offline, storage error, disk full, IP/MAC conflict, fan anomaly, cybersecurity exception

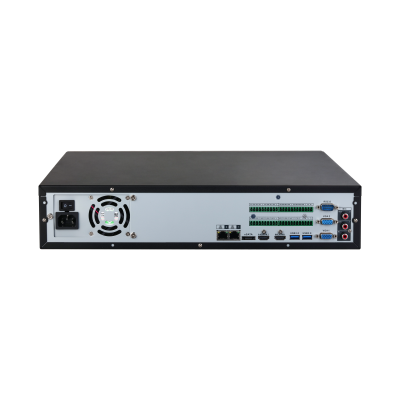

INTERFACES & PORTS

• USB: 4 ports (2 front USB 2.0, 2 rear USB 3.0)

• RS-232: 1

• RS-485: 2

• Video Out: 2 VGA, 2 HDMI

• Supports third-party cameras: ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Hanwha

POWER & ENVIRONMENT

• Input: 100‚Äì240 VAC, 50‚Äì60 Hz

• Power Consumption: ‚â§13 W (without HDD)

• Operating Temp: ‚Äì10 ¬∞C to +55 ¬∞C

• Storage Temp: ‚Äì20 ¬∞C to +60 ¬∞C

• Operating Humidity: 10‚Äì93% RH

PHYSICAL

• Dimensions: 439.9 √ó 457.9 √ó 89 mm (W √ó D √ó H)

• Net Weight: 6.4 kg

• Gross Weight: 9.01 kg

• Installation: rack or desktop

CERTIFICATIONS

• FCC, CE-EMC, CE-LVD

This NVR is ideal for large-scale IP camera setups, offering robust AI analytics, high channel count, multi-terabyte storage, and flexible RAID configurations for enterprise or commercial environments.
