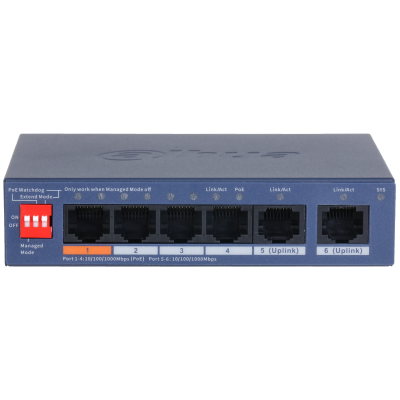

Dahua 6-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE (CS4006-4GT-60):

DESCRIPTION

• 4 PoE ports (Gigabit) + 2 uplink Gigabit Ethernet ports

• Total PoE budget: 60 W (Port 1 ‚⧠60 W, Ports 2-4 ‚⧠30 W)

• Cloud manageable via DoLynk App and web interface

• Wide operating temperature: ‚Äì10¬∞C to +55¬∞C

• Supports VLAN, loop protection, long-distance PoE

• Easy setup and real-time network monitoring

HARDWARE

• Ports: 4 √ó PoE 10/100/1000 Mbps, 2 √ó 10/100/1000 Mbps uplink

• PoE Protocol: IEEE802.3af/at, Hi-PoE

• PoE Pin Assignment: 1,2,4,5 (V+), 3,6,7,8 (V-)

• External Power Supply: 53 VDC, 0.8 A

• DIP Switch: Managed/Unmanaged mode, PoE Watchdog, Extend Mode

• Reset Button: 1

• Net Weight: 0.2 kg

• Gross Weight: 0.76 kg

• Product Dimensions: 115 √ó 84 √ó 27 mm

• Casing Material: Sheet metal

• Installation: Desktop or wall mount

PERFORMANCE

• Layer: 2

• Switching Capacity: 12 Gbps

• Packet Forwarding Rate: 8.9 Mpps

• Packet Buffer Size: 4 Mbit

• Jumbo Frame: 9216 Byte

• MAC Table Size: 2K

• VLAN Number: 32

• MTBF: 232.62 years

FEATURES

• PoE Management: On/off, overload protection, watchdog restart

• VLAN: IEEE 802.1Q VLAN

• Flow Control: IEEE 802.3x

• Mirror: N:1 and local port mirroring

• Reliability: LLDP

• DHCP: Client mode

• Security: Port isolation

• Protection: Air discharge 8 kV, Contact discharge 6 kV, Common mode 6 kV
