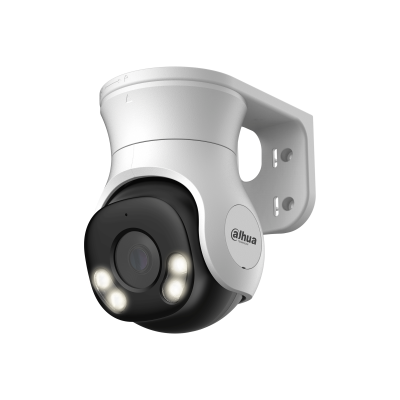

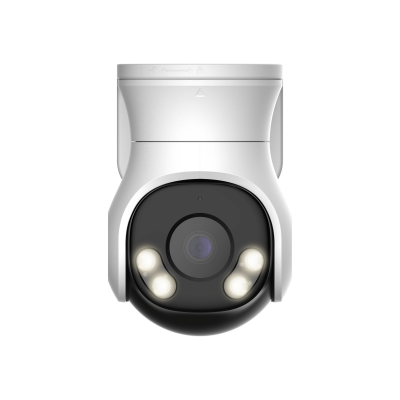

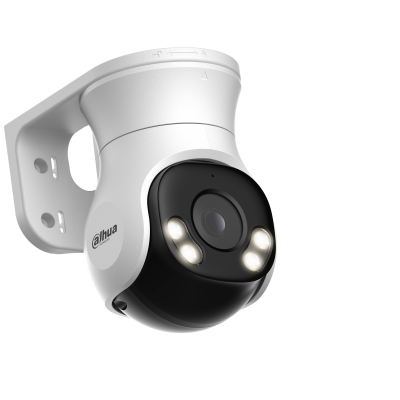

Dahua 5MP Smart Dual Light HDCVI Fixed-focal PT Camera (HAC-PT1500A-IL-A)

5MP HDCVI PT Camera with Smart Dual Light, Pan & Tilt, and 40m Illumination

• Applicable to PT1500-IL-S2 series

• Requires XVR firmware V4.001.0000004.1.R.220323 or later
  Max. 25 fps@5MP (16:9 video output)
  Smart Dual Light
  Smart Area Lighting
  Pan & Tilt
  40 m illumination distance
  Super Adapt
  Built-in Mic
  Quick-to-install structure
  3.6 mm fixed lens (2.8 mm optional)
  IP66, 12 VDC

Camera

Image Sensor
5 MP CMOS

Max. Resolution
2880 × 1620

Scanning System
Progressive

Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

Min. Illumination
0.05 lux@F2.0 (Color, 30 IRE)
0.005 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

65 dB

Illumination Distance
IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)

Illuminator On/Off Control
Auto; Manual

Illuminator Number
4 (Warm light); 4 (IR light)

Angle Adjustment
Pan: 0°–355°
Tilt: 0°–90°

Lens

Lens Type
Fixed-focal

Auto Focus
No

Lens Mount
M12

Focal Length
2.8 mm; 3.6 mm

Max. Aperture
F2.0

Field of View
2.8 mm: H: 112°; V: 58°; D: 134°
3.6 mm: H: 87°; V: 46°; D: 104°

Iris Control
Fixed

Close Focus Distance
2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.4 m (4.59 ft)

DORI Distance
2.8 mm: Detect 64.0 m | Observe 25.6 m | Recognize 12.8 m | Identify 6.4 m
3.6 mm: Detect 79.4 m | Observe 31.8 m | Recognize 15.9 m | Identify 7.9 m

Video

Video Frame Rate
CVI: PAL 5M@25 fps / 5M@12.5 fps / 4M@25 fps / 1080p@25 fps
NTSC 5M@25 fps / 5M@10 fps / 4M@30 fps / 1080p@30 fps
AHD: PAL 4M@25 fps | NTSC 4M@30 fps
TVI: PAL 4M@25 fps | NTSC 4M@30 fps
CVBS: PAL/NTSC 960H

Resolution
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night
Auto(ICR)/Color/B/W

BLC
BLC; HLC; DWDR

WDR
DWDR

White Balance
Auto; Area white balance

Gain Control
Auto; Manual

Noise Reduction
2D NR

Illumination Mode
Smart IR & WL; WL Mode; IR Mode

Mirror
Yes

Privacy Masking
Off/On (8 areas, rectangle)

Certification

Certifications
CE-LVD: EN 62368-1
CE-EMC: EN 55032; EN 55035

Port

Video Output
CVI/TVI/AHD/CVBS selectable via one BNC port

Audio Input
One channel built-in Mic

Power

Power Supply
12 VDC ± 30% (recommended to use a power adapter for one camera)

Power Consumption
Max 6.4 W (12 VDC, IR on)

Environment

Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity
<95% RH, non-condensing

Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity
<95% RH, non-condensing

Protection
IP66

Anti-corrosion Level
Basic Protection

Structure

Casing Material
Plastic

Product Dimensions
92.9 × 91.3 × 130 mm (3.66" × 3.59" × 5.12")

Net Weight
0.39 kg (0.86 lb)

Gross Weight
0.64 kg (1.41 lb)

Installation
Wall mount; ceiling mount; vertical pole mount
