Dahua 5MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera

Dahua 5MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera

Rs 1,500.00
Rs 1,615.00 Rs 1,500.00
Sale Sold out
Tax included.

Type : Analogue Cameras

SKU : HAC-HDW1500CLQ-IL-A-2.8

Collections : Dahua, Surveillance Systems | IP, Analog, Dome, Bullet & PTZ Cameras,

Availability : In Stock

Shipping & Returns

Delivery Available on this product.
We deliver all Mauritius domestic orders within 2-5 business days!

View full details

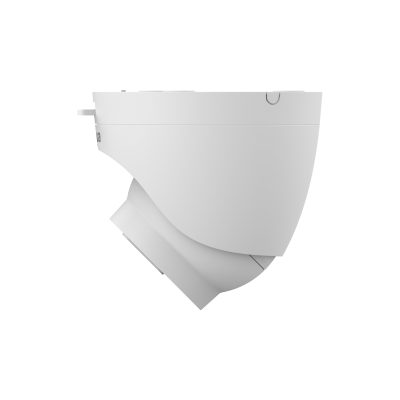

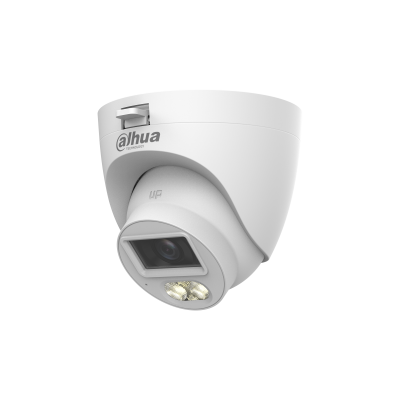

Dahua HDCVI 5MP Eyeball Camera HAC-HDW1500CLQ-IL-A-2.8

Camera Overview

  • Pixel / Sensor: 5MP CMOS

  • Max Resolution: 2880 √ó 1620 (5MP), TVI 5M 16:9: 2960 √ó 1665

  • Lens: Fixed 2.8 mm (optional 3.6 mm), M12 mount, F1.6

  • Field of View:

    • 2.8 mm: H 113.3¬∞, V 62.1¬∞, D 134.3¬∞

    • 3.6 mm: H 90.1¬∞, V 47.8¬∞, D 109.3¬∞

  • Close Focus Distance: 2.8 mm ‚Üí 0.8 m, 3.6 mm ‚Üí 1.3 m

Video & Imaging

  • Frame Rate:

    • CVI: 5MP@25 fps (PAL/NTSC), multiple sub-frame options

    • TVI: 5M 16:9@20 fps

    • AHD: 4M@25/30 fps

    • CVBS: 960H

  • Day/Night: Auto (ICR), Color, B/W

  • WDR: DWDR

  • BLC / HLC / WDR: Yes

  • Noise Reduction: 3D NR

  • Motion Detection: Yes

  • Mirror / Privacy Masking: Yes; 8 rectangle areas

Illumination

  • Smart Dual Light: IR + Warm Light (Full Color)

  • Distance: 30 m (98.4 ft)

  • Min Illumination: 0.01 lux (Color), 0.001 lux (B/W), 0 lux (LED on)

  • Illuminator Control: Auto

  • Illuminator Number: 2 multi-core lights

DORI Distances (2.8 mm / 3.6 mm)

Function 2.8 mm 3.6 mm
Detect 59.8 m 77 m
Observe 23.9 m 30.8 m
Recognize 12 m 15.4 m
Identify 6 m 7.7 m

Audio

  • Built-in MIC: Yes

  • Audio Input / Output: CVI / TVI

Connectivity

  • Video Output: CVI / TVI / AHD / CVBS via BNC (DIP switch)

Power & Environment

  • Power Supply: 12 VDC ¬±30%

  • Power Consumption: Max 4.3 W (LED on)

  • Operating Temp: ‚Äì40 ¬∞C to +60 ¬∞C

  • Humidity: <95% RH, non-condensing

  • Protection: IP67

Physical

  • Casing: Plastic

  • Dimensions: Œ¶97.4 √ó 92.9 mm

  • Weight: 0.22 kg (net), 0.29 kg (gross)

  • Mounting: Wall, ceiling, vertical pole
