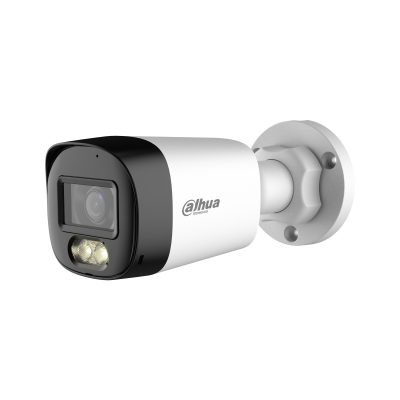

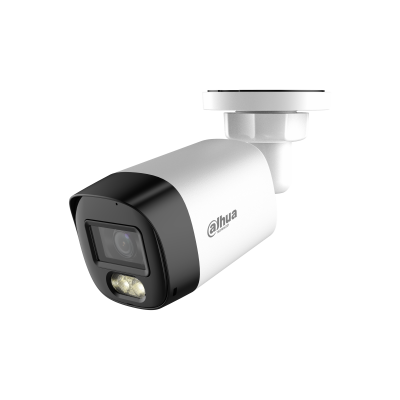

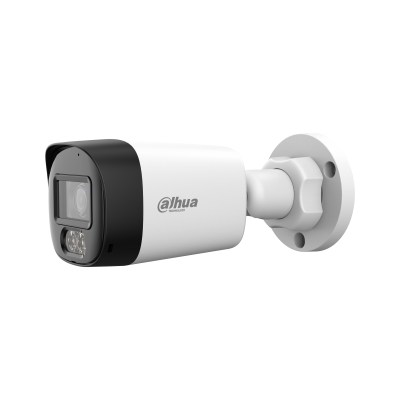

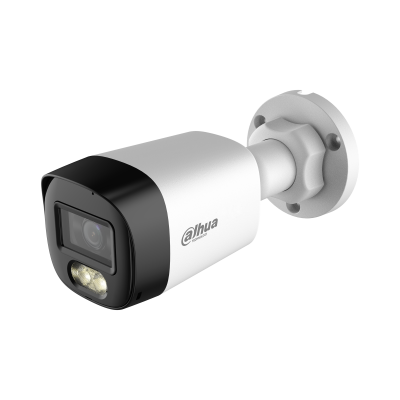

Dahua 5MP HDCVI Bullet Camera with Smart Dual Light, Starlight, and 30m Illumination

• Applicable to 1500-IL-S3 series

• Requires XVR firmware V4.001.0000004.1.R.220323 or later
  Max. 25 fps@5MP (16:9 video output)
  Starlight, 3D NR
  Smart Dual Light
  30 m illumination distance
  Built-in Mic
  2.8 mm
  CVI/CVBS/AHD/TVI switchable
  IP67, 12 VDC

Camera

Image Sensor
5 MP CMOS

Max. Resolution
2880 × 1620

Scanning System
Progressive

Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

Min. Illumination
0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

65 dB

Illumination Distance
IR: 30 m (98.43 ft)
Warm Light: 30 m (98.43 ft)

Illuminator On/Off Control
Auto

Illuminator Number
2 (Multi-core light)

Angle Adjustment
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type
Fixed-focal

Auto Focus
No

Lens Mount
M12

Focal Length
2.8 mm; 3.6 mm

Max. Aperture
F1.6

Field of View
2.8 mm: H: 113.3°; V: 62.1°; D: 134.3°
3.6 mm: H: 90.1°; V: 47.8°; D: 109.3°

Iris Control
Fixed

Close Focus Distance
2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft)

DORI Distance
2.8 mm: Detect 59.8 m | Observe 23.9 m | Recognize 12.0 m | Identify 6.0 m
3.6 mm: Detect 77 m | Observe 30.8 m | Recognize 15.4 m | Identify 7.7 m

Video

Video Frame Rate
CVI: PAL 5M@25 fps / 5M@12.5 fps / 4M@25 fps / 1080p@25 fps
NTSC 5M@25 fps / 5M@20 fps / 5M@10 fps / 4M@30 fps / 1080p@30 fps
AHD: PAL 4M@25 fps | NTSC 4M@30 fps
TVI: PAL 5M 16:9@20 fps | NTSC 5M 16:9@20 fps
CVBS: PAL/NTSC 960H

Resolution
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)

Day/Night
Auto(ICR)/Color/B/W

BLC
BLC; HLC; WDR

WDR
DWDR

White Balance
Auto; Area white balance

Gain Control
Auto

Noise Reduction
3D NR

Motion Detection
Yes

Illumination Mode
Smart IR & WL; WL Mode; IR Mode

Mirror
Yes

Privacy Masking
Off/On (8 areas, rectangle)

Pick-up Distance
8 m (26.25 ft)

Certification

Certifications
CE-LVD: EN 62368-1
CE-EMC: EN 55032; EN 55035

Audio

Built-in Mic
Yes

Camera Audio
CVI; TVI

Port

Video Output
CVI/TVI/AHD/CVBS selectable via one BNC port (DIP Switch)

Power

Power Supply
12 VDC (±30%)

Power Consumption
Max 4.3 W (12 VDC, WLED on)

Environment

Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity
<95% RH, non-condensing

Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity
<95% RH, non-condensing

Protection
IP67

Anti-corrosion Level
Basic Protection

Structure

Casing Material
Plastic

Product Dimensions
161.6 × 70.0 × 69.7 mm (6.36" × 2.76" × 2.74")

Net Weight
0.20 kg (0.44 lb)

Gross Weight
0.27 kg (0.60 lb)

Installation
Wall mount; ceiling mount; vertical pole mount
