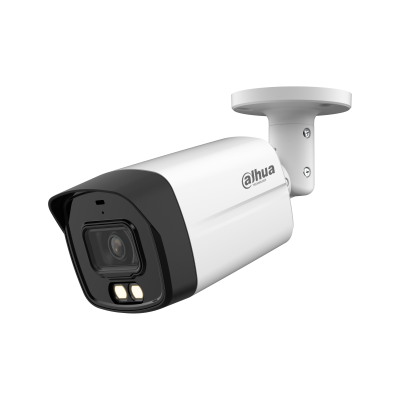

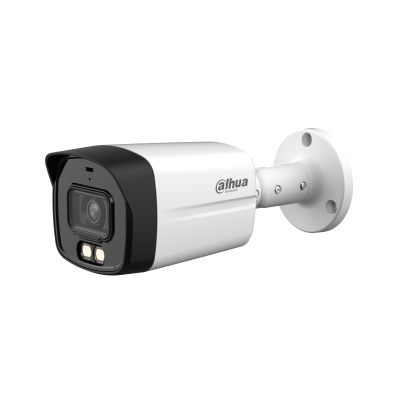

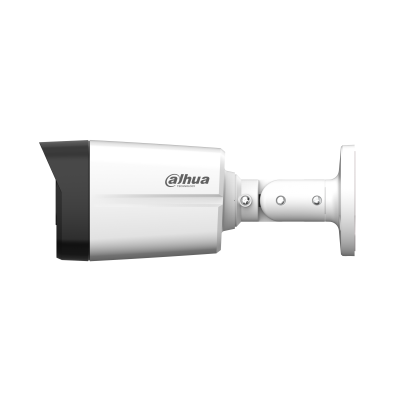

Dahua HDCVI 5MP Bullet Camera HAC-HFW1509TLM-IL-A

Camera Overview

• Pixel / Sensor: 5MP CMOS

• Max Resolution: 2880 √ó 1620 (5MP)

• Lens: Fixed 2.8 mm (optional 3.6 mm), M12 mount, F1.0

• Field of View:

  • 2.8 mm: H 111¬∞, V 57¬∞, D 131¬∞

  • 3.6 mm: H 89¬∞, V 47¬∞, D 104¬∞

• Close Focus Distance: 2.8 mm ‚Üí 1.5 m, 3.6 mm ‚Üí 2.2 m

Video & Imaging

• Frame Rate:

  • CVI: 5MP@25 fps; 4MP@25 fps; 1080p@25 fps

  • AHD/TVI: 4MP@25/30 fps

  • CVBS: 960H

• Day/Night: Auto (ICR), Color, B/W

• WDR: 120 dB

• Noise Reduction: 3D NR

• BLC / HLC / HLC-Pro: Yes

• Defog: Electronic

• Digital Zoom: 4√ó

• Mirror / Privacy Masking: Yes; 8 rectangle areas

Illumination

• Smart Dual Illuminators: IR + Warm Light (Full Color)

• Distance: 40 m (131 ft)

• Modes: Smart IR & WL, WL Mode, IR Mode

• Min Illumination: 0.001 lux (Color), 0.0001 lux (B/W), 0 lux (LED on)

Audio

• Built-in MIC: Yes

• Audio Input: 1 channel

Connectivity

• Video Output: Switchable CVI / TVI / AHD / CVBS via BNC

Power & Environment

• Power Supply: 12 VDC ¬±30%

• Power Consumption: Max 5.7 W (LED on)

• Operating Temp: ‚Äì40 ¬∞C to +60 ¬∞C

• Humidity: <95% RH, non-condensing

• Protection: IP67

DORI Distances (2.8 mm / 3.6 mm)

Physical

• Casing: Metal front, plastic rear, metal bracket

• Dimensions: 198.4 √ó 80.2 √ó 76.2 mm

• Weight: 0.34 kg (net), 0.51 kg (gross)

• Mounting: Wall, ceiling, vertical pole

Certifications

CE, FCC, UL (EN55032, EN61000, UL62368-1, ANSI C63.4)
