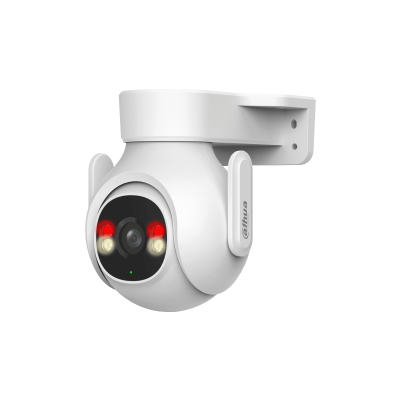

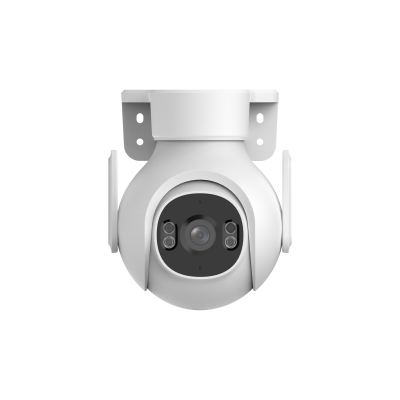

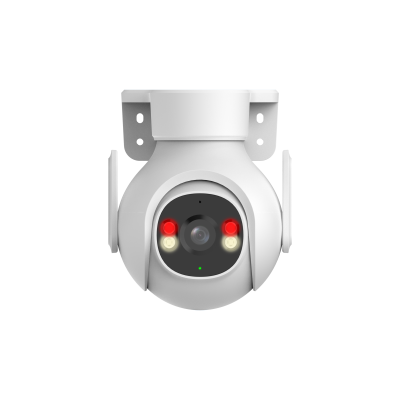

Dahua P5B-PV 5MP Outdoor Fixed-focal Wi-Fi Pan & Tilt Camera:

OVERVIEW

• 5MP Pan & Tilt camera with fixed-focal lens

• Smart dual illumination: IR + Warm Light (up to 30 m)

• AI human and vehicle detection

• Auto tracking & preset patrol

• Active deterrence: sound and light alarms

• Two-way audio (built-in mic & speaker)

• MicroSD support: up to 256 GB

• IP66 rated for outdoor use

• Ideal for small outdoor areas like shops, homes, or offices

CAMERA SPECIFICATIONS

• Sensor: 1/3" CMOS

• Max Resolution: 2880 √ó 1620 (5MP)

• Shutter Speed: Auto/Manual 1/3 s‚Äì1/100,000 s

• Illumination: Up to 30 m for IR & warm light

• Lens: Fixed-focal, F1.6

• Field of View: H 78¬∞ / V 40¬∞ / D 93¬∞

• Pan/Tilt Range: Pan 0¬∞‚Äì355¬∞, Tilt 0¬∞‚Äì90¬∞

INTELLIGENCE & FEATURES

• Human detection

• Vehicle detection

• Motion detection

• Smart illumination to reduce light pollution

• Active deterrence (alarm + lights)

• Auto-tracking & preset patrol

VIDEO & AUDIO

• Video Compression: H.265

• Frame Rate:

  • Main stream: 2880 √ó 1620 @ 1‚Äì25/30 fps

  • Sub stream: 640 √ó 360 @ 1‚Äì25/30 fps

• Bit Rate: 80 kbps‚Äì4096 kbps

• Day/Night: Auto(ICR)/Color/B&W

• WDR: DWDR

• Built-in Mic & Speaker: Yes

• Audio Compression: G.711a

NETWORK

• RJ-45: 10/100 Base-T

• Wi-Fi: IEEE 802.11b/g/n/ax, 2.4 GHz

• Mobile client: iOS/Android via DMSS

POWER & ENVIRONMENT

• Power: 12 VDC, 1 A

• Power Consumption: Basic 1.68 W; Max 4.56 W (H.265 + warm light on)

• Operating Temp: ‚Äì20¬∞C to +50¬∞C

• Operating Humidity: ‚â§95% RH

• Protection: IP66

PHYSICAL

• Dimensions: 116 √ó 138 √ó 139 mm

• Weight: 425 g

• Casing: Plastic

This camera is compact yet intelligent, offering dual-light illumination, AI detection, and pan/tilt functionality while being very energy-efficient.
