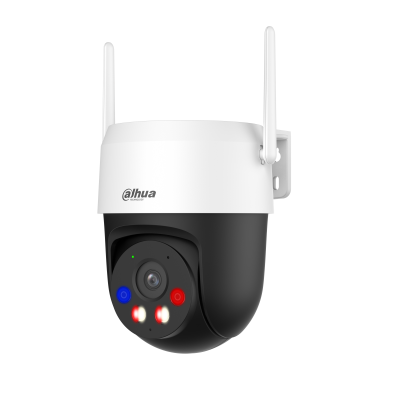

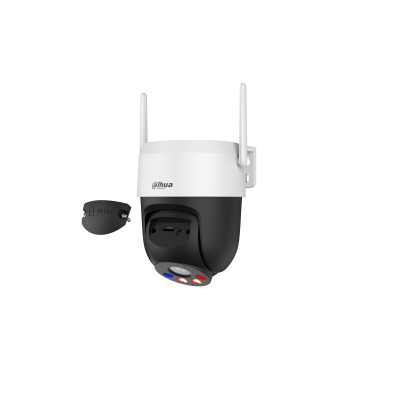

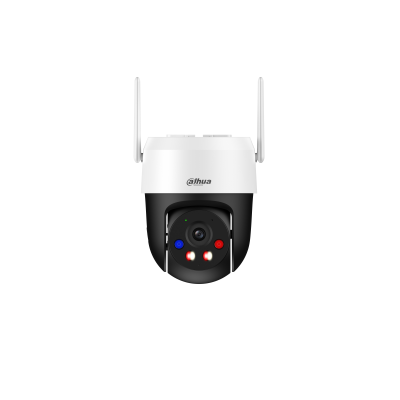

Dahua P5AS-PV 5MP Outdoor Fixed-focal Wi-Fi Pan & Tilt Camera (Active Defense series):

OVERVIEW

• 5MP Pan & Tilt camera with smart dual illuminators (IR + warm light)

• AI human and vehicle detection

• Auto tracking & active deterrence (sound + light alarms)

• Two-way audio (built-in mic & speaker)

• MicroSD support: up to 256 GB

• Dual-band Wi-Fi: 2.4 GHz & 5 GHz

• IP66 rated for outdoor use

• Suitable for small to medium outdoor areas like homes, shops, and offices

CAMERA SPECIFICATIONS

• Sensor: 1/2.7" CMOS

• Max Resolution: 2880 √ó 1620 (5MP)

• Min. Illumination:

  • 0.007 lux @ F1.6 (Color)

  • 0.0007 lux @ F1.6 (B/W)

  • 0 lux with illuminator on

• Illumination Distance: 30 m (IR & Warm Light)

• Lens: Fixed-focal, 4 mm, F1.6

• Field of View: H 78¬∞ / V 42¬∞ / D 92¬∞

• Pan/Tilt/Rotation Range: Pan 0¬∞‚Äì345¬∞, Tilt 0¬∞‚Äì90¬∞, Rotation 0¬∞‚Äì345¬∞

INTELLIGENCE

• AI human detection

• AI vehicle detection

• Motion detection (4 areas, adjustable)

• Abnormal sound alarm

• Smart dual illuminators reduce light pollution and improve clarity

VIDEO & AUDIO

• Video Compression: H.265 / H.264 / MJPEG (sub stream)

• Frame Rate:

  • Main stream: 2880 √ó 1620 @ 1‚Äì25/30 fps

  • Sub stream: 640 √ó 360 @ 1‚Äì25/30 fps

• Video Bit Rate: 32 kbps‚Äì6144 kbps

• Day/Night: Auto(ICR)/Color/B&W

• WDR: DWDR

• Audio: Built-in mic & speaker, G.711a/G.711Mu/PCM

NETWORK

• RJ-45: 10/100 Base-T

• Wi-Fi: 2.4 GHz & 5 GHz, Bluetooth pairing

• Supports ONVIF Profiles S, G, T

• MicroSD storage up to 256 GB

• Mobile & PC client: DMSS, Smart PSS Lite, DSS

POWER & ENVIRONMENT

• Power: 12 VDC ¬±30%

• Power Consumption:

  • Basic: 2 W

  • Max: 14 W (illuminators, deterrence, speaker, PT, Wi-Fi, WDR active)

• Operating Temp: ‚Äì30¬∞C to +55¬∞C

• Operating Humidity: ‚â§95% RH

• Protection: IP66

PHYSICAL

• Dimensions: 125.4 √ó 110 √ó 140.3 mm

• Net Weight: 0.4 kg

• Casing: Plastic

This camera is more advanced than the P5B-PV, featuring dual-band Wi-Fi, wider operating temperature range, and higher max power consumption for active deterrence. It’s ideal if you want more robust outdoor protection with smart alerts and dual-light enhanced clarity.
