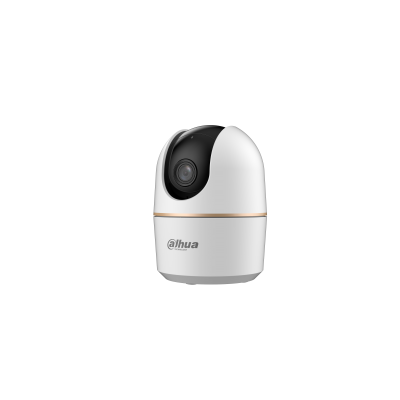

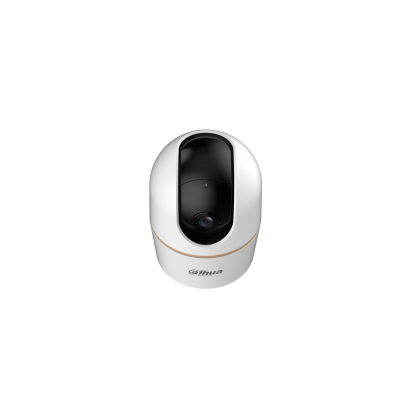

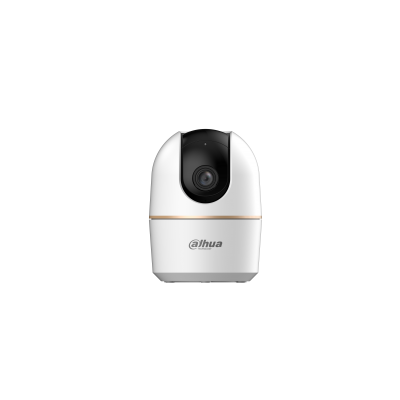

Dahua H5A 5MP Indoor Fixed-focal Wi-Fi Pan & Tilt Camera:

OVERVIEW

• Indoor single-lens PT camera with 5MP resolution

• AI human & pet detection for accurate monitoring

• Supports two-way talk

• Includes privacy protection, auto-tracking, and preset patrols

• Ideal for small indoor areas like shops, offices, or homes

CAMERA SPECIFICATIONS

• Sensor: 1/3" CMOS

• Max Resolution: 2880 √ó 1620 (5MP)

• Illumination Distance: Up to 10 m (IR)

• Illuminator Number: 1 IR LED

• Pan/Tilt Range: Pan 0¬∞‚Äì355¬∞, Tilt ‚Äì5¬∞ to 80¬∞

• Focal Length: Fixed

• Max Aperture: F2.0

• Field of View: H 74¬∞ / V 41¬∞ / D 88¬∞

INTELLIGENCE

• Human detection: Yes

• Pet detection: Yes

• Motion detection: Yes

• Privacy mode: Yes

• Auto tracking & preset patrols: Yes

VIDEO & AUDIO

• Compression: H.265

• Frame Rate:

  • Main stream: 2880 √ó 1620 @ 1‚Äì30 fps

  • Sub stream: 640 √ó 360 @ 1‚Äì30 fps

• Video Bit Rate: 80 kbps‚Äì4096 kbps

• Day/Night: Auto(ICR)/Color/B&W

• WDR: DWDR

• Built-in mic & speaker: Yes

• Audio Compression: G.711a

NETWORK

• RJ-45: 10/100 Base-T

• Wi-Fi: IEEE 802.11b/g/n/ax, 2.4 GHz

• Storage: microSD card up to 256 GB

• Mobile & PC client: DMSS

POWER & ENVIRONMENT

• Power Supply: 5 VDC

• Power Consumption: Basic 1.9 W; Max 4 W (live + IR + PT rotation)

• Operating Temp: ‚Äì10 ¬∞C to +45 ¬∞C

• Operating Humidity: ‚â§95% RH

PHYSICAL

• Dimensions: œÜ77.8 √ó 108.1 mm

• Net Weight: 195 g

• Casing Material: Plastic

This model is smaller, more compact, and lower power compared to the H5D dual-lens model, making it ideal for single-room indoor coverage.
