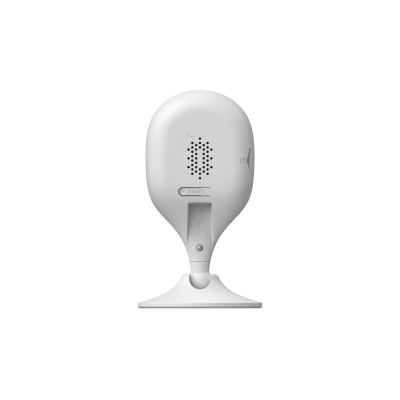

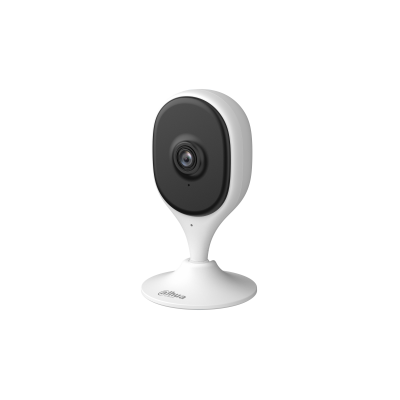

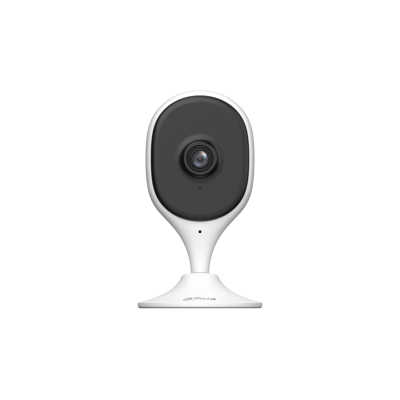

Dahua C5A 5MP Indoor Fixed-focal Wi-Fi Cube Camera:

OVERVIEW

• Indoor cube-style camera with fixed lens

• AI human & pet detection

• Supports two-way talk

• Privacy protection with magnetic base for flexible placement

• Ideal for small indoor areas such as retail stores, homes, or offices

CAMERA SPECIFICATIONS

• Sensor: 1/2.7" CMOS

• Max Resolution: 2880 √ó 1620 (5MP)

• Illumination Distance: Up to 10 m (IR)

• Illuminator Number: 1 IR LED

• Pan/Tilt Range: Pan 0¬∞‚Äì360¬∞, Tilt ‚Äì10¬∞ to 70¬∞

• Focal Length: Fixed 2.0 mm

• Max Aperture: F2.0

• Field of View: H 90¬∞ / V 49¬∞ / D 106¬∞

INTELLIGENCE

• Human detection: Yes

• Motion detection: Yes

• Privacy mode: Yes

VIDEO & AUDIO

• Compression: H.265

• Frame Rate:

  • Main stream: 2880 √ó 1620 @ 1‚Äì30 fps

  • Sub stream: 640 √ó 360 @ 1‚Äì30 fps

• Video Bit Rate: 80 kbps‚Äì4096 kbps

• Day/Night: Auto(ICR)/Color/B&W

• WDR: DWDR

• Built-in mic & speaker: Yes

• Audio Compression: G.711a

NETWORK

• Wi-Fi: IEEE 802.11b/g/n/ax, 2.4 GHz

• Storage: microSD card up to 256 GB

• Mobile & PC client: DMSS

POWER & ENVIRONMENT

• Power Supply: 5 VDC, 1 A

• Power Consumption: Basic 1.65 W; Max 2.75 W (H.265 + IR)

PHYSICAL

• Compact cube design for flexible placement

• Casing Material: Plastic

• Net Weight: 195 g

This C5A Cube camera is the most compact and energy-efficient indoor option you have shared, with simple pan/tilt flexibility and full 5MP coverage for small areas.
