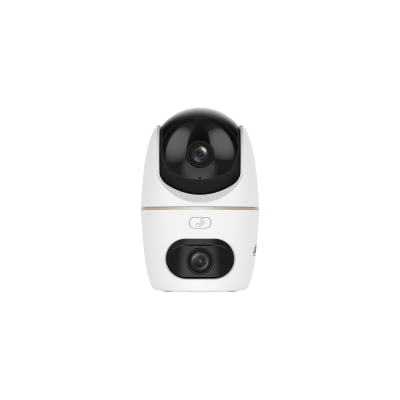

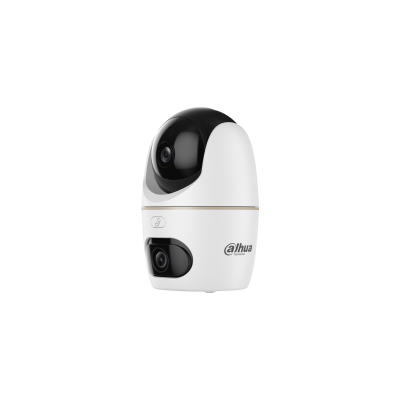

Dahua H5D-5F 5+5MP Indoor Wi-Fi Dual-Lens Pan & Tilt Camera:

OVERVIEW

• Indoor dual-lens PT camera combining fixed and PT lenses for simultaneous coverage of two areas

• AI human & pet detection to reduce false alarms

• Triggers sound & light alerts and sends mobile notifications on intrusion

• Supports two-way talk and microSD storage up to 256 GB

• Privacy mode and preset patrols for controlled monitoring

• Ideal for small indoor spaces like stores, restaurants, or homes

CAMERA SPECIFICATIONS

Fixed Lens

• Sensor: 1/3" CMOS

• Max Resolution: 2880 √ó 1620 (5MP)

• Illumination Distance: Up to 30 m (IR)

• Illuminator Number: 2 IR LEDs

• Angle Adjustment: 0¬∞ to 15¬∞

• Focal Length: 3.6 mm, F2.0

• Field of View: H 86¬∞ / V 46¬∞ / D 104¬∞

PT Lens

• Sensor: 1/3" CMOS

• Max Resolution: 2880 √ó 1620 (5MP)

• Illumination Distance: Up to 30 m (IR/Warm Light)

• Illuminator Number: 2 IR LEDs, 1 Warm Light

• Pan/Tilt Range: Pan 0¬∞‚Äì349¬∞, Tilt ‚Äì5¬∞ to 90¬∞

• Focal Length: 3.6 mm, F2.0

• Field of View: H 86¬∞ / V 46¬∞ / D 104¬∞

INTELLIGENCE

• Human detection: Yes

• Pet detection: Yes

• Motion detection: Yes

• Privacy mode: Yes

• Abnormal sound alarm: Yes

VIDEO & AUDIO

• Compression: H.265

• Frame Rate:

  • Main stream: 2880 √ó 1620 @ 15 fps

  • Sub stream: 640 √ó 360 @ 15 fps

• Video Bit Rate: 768 kbps‚Äì4096 kbps

• Day/Night: Auto(ICR)/Color/B&W

• WDR: DWDR

• Built-in mic & speaker: Yes

• Audio Compression: G.711a

NETWORK

• RJ-45: 10/100 Base-T

• Wi-Fi: IEEE 802.11a/b/g/n/ac/ax, 2.4 & 5 GHz

• Wi-Fi pairing: Bluetooth pairing

• Storage: microSD card up to 256 GB

• Mobile & PC client: DMSS

POWER & ENVIRONMENT

• Power Supply: 5 VDC

• Power Consumption: Basic 2.5 W; Max 5.4 W (stream + IR + PT rotation)

• Operating Temp: ‚Äì10 ¬∞C to +45 ¬∞C

• Operating Humidity: ‚â§95% RH

PHYSICAL

• Dimensions: Œ¶80.9 √ó 125.7 mm

• Net Weight: 233 g

• Casing Material: Plastic

This camera is designed specifically for indoor use, with dual-lens coverage and AI pet detection as standout features, making it ideal for monitoring areas where people and pets move frequently.
