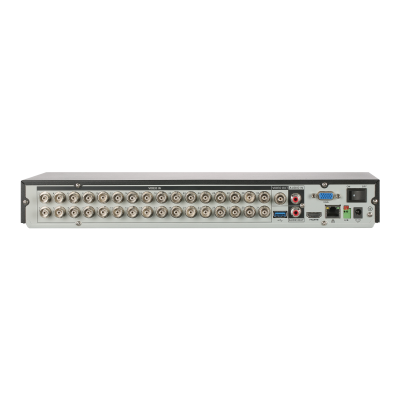

Dahua 32CH Penta-brid 5MP Value/1080P 1U 2HDDs WizSense XVR5232AN-I3

Overview

• Model: XVR5232AN-I3

• Type: 32-Channel Penta-brid DVR (HDCVI/AHD/TVI/CVBS/IP)

• WizSense AI: Supports human & vehicle detection, face recognition, perimeter protection, and SMD Plus

• HDD: 2 SATA ports, each up to 16 TB

• Form Factor: 1U desktop

AI & Smart Features

• QuickPick 2.0: 2 analog channels for target retrieval

• SMD Plus: 32 analog / 48 IP channels, filters humans & vehicles, reduces false alarms

• Perimeter Protection: 8 analog channels with tripwire & intrusion detection

• Face Recognition: 2 analog channels, supports comparison, 10 databases, up to 10,000 images

• Face Detection: 2 channels, 6 attributes

• AI Coding: 16-channel enhancement to save bandwidth & storage

• Note: IP extension disables AI features

Video & Encoding

• Analog Input: 32 BNC ports, auto-detect HDCVI/AHD/TVI/CVBS

• IP Input: Up to 48 channels (default 16)

• Bandwidth: 192 Mbps in/out

• Encoding: H.265+, H.265, H.264+, H.264, AI Coding

• Dual-stream supported

• Video Output: 1 HDMI (up to 4K), 1 VGA, 1 CVBS

• Multi-screen Display: Main: 1/4/8/9/16/25/36; Sub: 1/4/8/9/16

Audio

• 32-channel BNC analog audio input

• 1 RCA audio input/output

• 2-way talk (shares audio with first channel)

• Audio compression: G.711a/u, PCM

Network & Compatibility

• Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, FTP, DDNS, SNMP, P2P

• Mobile access: iOS / Android

• Third-party cameras: Panasonic, Sony, Hanwha, Axis, Arecont, ONVIF

Recording & Playback

• Modes: General, alarm, motion, intelligent, POS

• Playback: 1/4/9/16 channels simultaneously

• Backup: USB device / network

• Smart playback: tag-based or event-based

Alarm

• General: Motion, HDCVI, external, network, PIR

• Anomaly: Disk error, low space, video loss, tampering, offline camera

• Intelligent: Face detection/recognition, SMD Plus, perimeter protection

• Linkage: Record, snapshot, external output, audio, buzzer, email

Ports

• RS-485: 1

• USB: 1 front USB 2.0, 1 rear USB 3.0

• HDMI: 1

• VGA: 1

• Network: 1 √ó 10/100/1000 Mbps RJ-45

• Audio: 1 RCA in / 1 RCA out

Power & Environment

• Power: 12 VDC, 5 A

• Power Consumption: <16 W (without HDD)

• Operating Temp: ‚Äì10 ¬∞C to +55 ¬∞C

• Storage Temp: ‚Äì20 ¬∞C to +60 ¬∞C

• Humidity: 10‚Äì90% RH, non-condensing

Physical

• Dimensions: 375 √ó 289.6 √ó 53 mm (W√óD√óH)

• Weight: 1.90 kg net, 3.20 kg gross

• Installation: Desktop

• Certifications: CE, FCC
