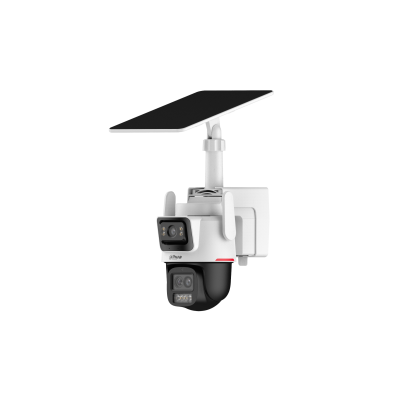

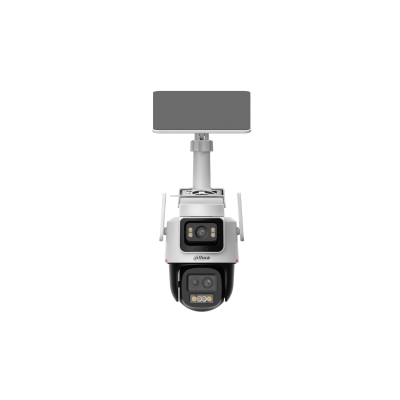

Dahua 3+3MP WizColor Hybrid-zoom PT 4G Solar Power Network Camera
Hybrid-zoom PTZ camera with 4G connectivity, solar power, WizColor technology, and built-in battery

Displays videos in two channels at the same time
1/2.8" 3 Megapixel CMOS
WizColor technology
6x hybrid zoom
Two-way talk
SMD 3.0
Siren and Light Active Deterrence
Auto Tracking Lite
Supports AOV mode
4G Connection
Built-in 65Wh high-capacity ternary lithium battery
Supports Type-C power supply
Manual adjustment of fixed lens (Vertical: -7° to 20°)
IP66

Camera

Image Sensor
Fixed Lens: 1/2.8" CMOS
PT Lens: 1/2.8" CMOS

Pixel
Fixed Lens: 3 MP
PT Lens: 3 MP

Max. Resolution
Fixed Lens: 2304 × 1296
PT Lens: 2304 × 1296

ROM / RAM
256 MB / 256 MB

Scanning System
Progressive

Min. Illumination
Fixed Lens: 0.0005 lux@F1.0 (Color, 30 IRE); 0 lux (Illuminator on)
PT Lens: 0.0005 lux@F1.0 (Color, 30 IRE); 0 lux (Illuminator on)

Illumination Distance
Fixed Lens: 30 m (Warm light)
PT Lens: 50 m (Warm light)

Illuminator On/Off Control
Fixed Lens: Manual; Auto; Off
PT Lens: Manual; Auto; Off

Illuminator Number
Fixed Lens: 4 (Warm light)
PT Lens: 4 (Warm light)

Lens

Focal Length
Fixed Lens: 2.8 mm
PT Lens: 3.6 mm; 8.4 mm

Max. Aperture
Fixed Lens: F1.0
PT Lens: F1.0

Field of View
Fixed Lens: H: 93.5°; V: 51.9°; D: 110.1°
PT Lens 3.6 mm: H: 81.5°; V: 44.3°; D: 96.3°
PT Lens 8.4 mm: H: 15.1°; V: 8.4°; D: 17.8°

Close Focus Distance
Fixed Lens: 1.1 m
PT Lens 3.6 mm: 1.7 m; 8.4 mm: 6 m

DORI Distance
2.8 mm: Detect 40 m | Observe 15.8 m | Recognize 8 m | Identify 4 m
3.6 mm: Detect 51.43 m | Observe 20.31 m | Recognize 10.29 m | Identify 5.14 m
8.4 mm: Detect 120 m | Observe 47.4 m | Recognize 24 m | Identify 12 m

PTZ

Pan/Tilt Range
Fixed Lens: Pan 0°–210°; Tilt -7°–+20° (manual)
PT Lens: Pan 0°–350°; Tilt 0°–+90° (electric)

Manual Control Speed
Pan: 40°/s; Tilt: 40°/s

Preset Speed
Pan: 40°/s; Tilt: 40°/s

Preset
50

Tour
8 (up to 32 presets per tour)

Power-off Memory
Yes

Smart Event

Human Detection
Yes

Vehicle Detection
Yes

Smart Tracking
Auto tracking lite; Linkage tracking

SMD
SMD 3.0

Active Deterrence
Light Warning: White light
Sound Warning: 3 levels, volume 1–100, play times 1–10

Video

Video Compression
Smart H.265+

Streaming Capability
1 stream

Resolution
Fixed Lens: 3M, 1080p, 720p, 640 × 360
PT Lens: 3M, 1080p, 720p, 640 × 360

Video Frame Rate
Fixed Lens: 15 fps
PT Lens: 15 fps

Bit Rate Control
VBR

Video Bit Rate
H.265: 54 kbps–1280 kbps

WDR
Fixed Lens: DWDR; PT Lens: DWDR

White Balance
Auto

Gain Control
Auto

Noise Reduction
3D NR

Motion Detection
Yes

Image Rotation
180°

S/N Ratio
≥55 dB

Audio

Built-in MIC
Yes

Built-in Speaker
Yes

Network

Carrier Network System
4G

Wireless Carrier Frequency Band
EAU/EUR: LTE-FDD B1/B3/B5/B7/B8/B20/B28; LTE-TDD B38/B40/B41
LA: LTE-FDD B2/B3/B4/B5/B7/B8/B28/B66; LTE-TDD B38/B40/B41

Max. Transmission Power
4G: 23 dBm ± 2.7 dB

Storage
Micro SD card (512 GB)

Management Software
DMSS

Mobile Client
Android; iOS

Certification
CE: EN 55032 / EN 55035 / EN 50130-4 / EN 61000-3 / EN 62368-1 / EN 301489

Port

Audio Input
1 channel (built-in mic)

Audio Output
1 channel (built-in speaker)

Alarm Linkage
Warning light; audio

Alarm Event
Motion detection; human detection; vehicle detection

Power

Power Supply
Built-in 65Wh lithium battery; 8 W solar panel; USB Type-C (supports QC2.0)

Power Consumption
Super Power Saving: 40 mW
AOV Mode: 170 mW
Performance Mode 1: 2.4 W
Performance Mode 2: 3.7 W
Maximum: 8 W

Battery Capacity
65 Wh

Environment

Operating Temperature
Device: –20 °C to +60 °C
Battery Charging: –10 °C to +50 °C
Battery Discharging: –20 °C to +60 °C

Operating Humidity
≤95%

Protection
IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions
223.2 × 130 × 215 mm (8.79" × 5.12" × 8.46")

Net Weight
1.8 kg (3.97 lb)

Gross Weight
2.5 kg (5.51 lb)

Remarks
PTZ preset precision may vary by series. Contact local sales representative for high-precision requirements.
