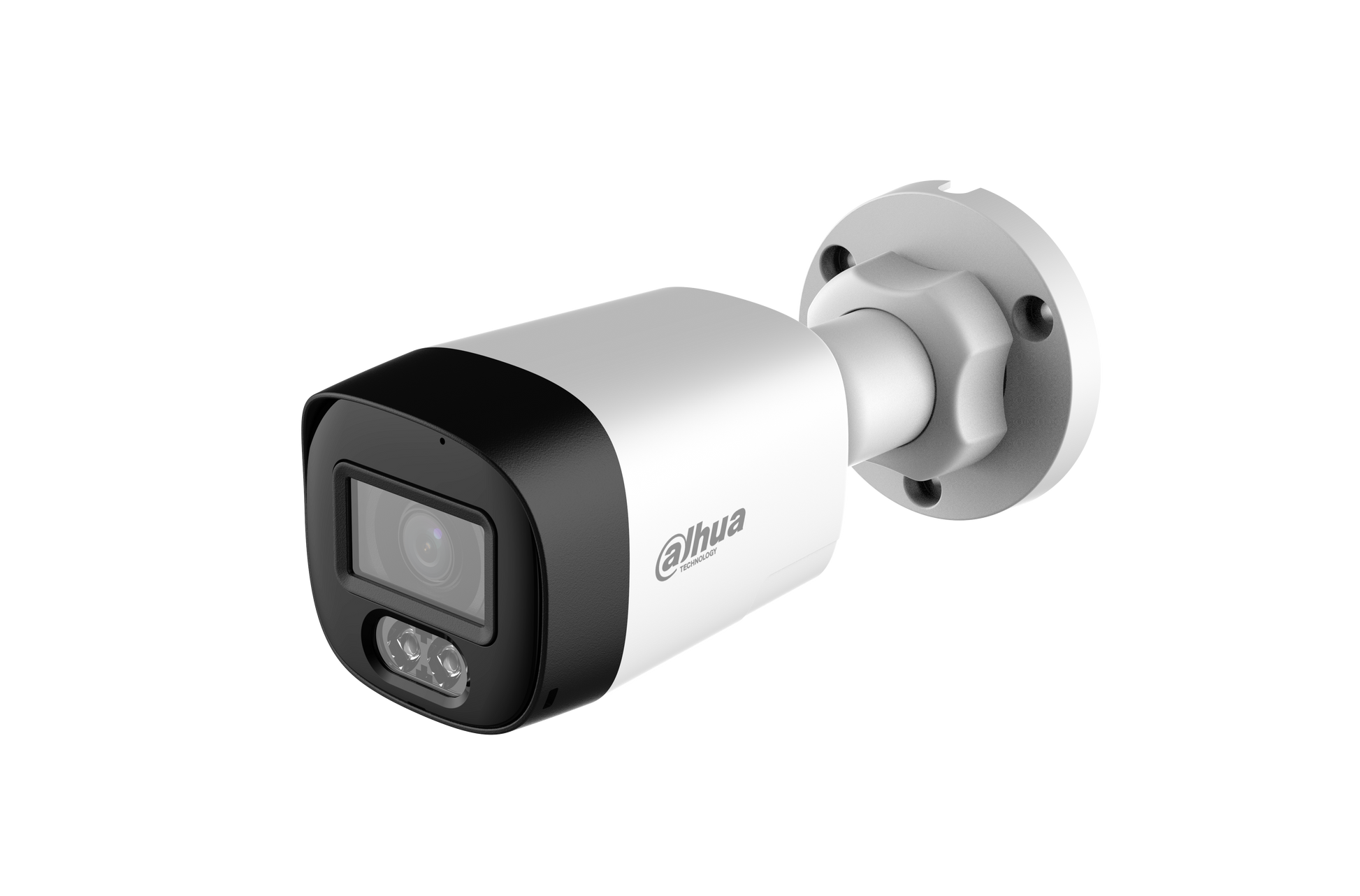

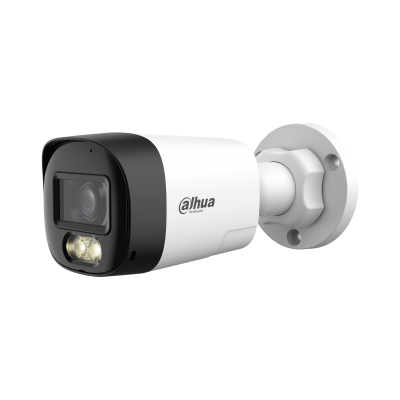

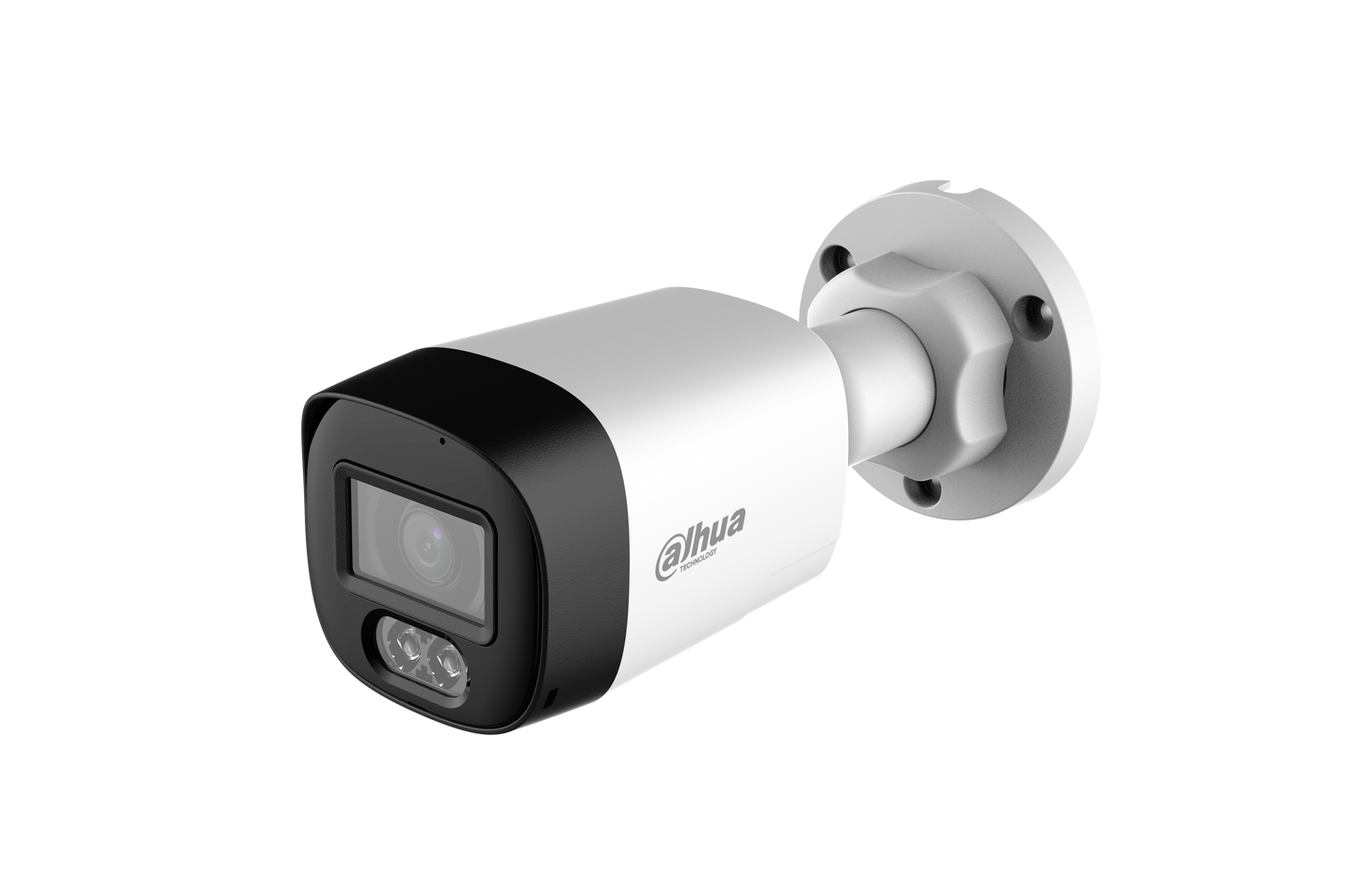

2MP Smart Dual Light HDCVI Two-way Talk Fixed-focal Bullet Camera (HAC-HFW1200RL-IL-T)

• Requires XVR firmware V4.001.0000004.1.R.220323 or later version
  Max. 30 fps@1080p
  Two-way Talk
  Smart Dual Light + Smart Light+
  3D NR
  30 m illumination distance
  3.6 mm fixed lens (2.8 mm optional)
  CVI/CVBS/AHD/TVI switchable
  IP67, 12 VDC

Camera

Image Sensor
2 MP CMOS

Max. Resolution
1920 × 1080

Scanning System
Progressive

Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

Min. Illumination
0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

65 dB

Illumination Distance
30 m (98.43 ft)

Illuminator On/Off Control
Auto; Manual

Illuminator Number
2 (Multi-core light)

Angle Adjustment
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type
Fixed-focal

Lens Mount
M12

Focal Length
2.8 mm; 3.6 mm

Max. Aperture
F2.0

Field of View
2.8 mm: H: 111.3°; V: 60.8°; D: 134.2°
3.6 mm: H: 89°; V: 48.2°; D: 109.1°

Close Focus Distance
2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)

DORI Distance
2.8 mm: Detect 40.6 m | Observe 16.2 m | Recognize 8.1 m | Identify 4.1 m
3.6 mm: Detect 49.9 m | Observe 20.0 m | Recognize 10.0 m | Identify 5.0 m

Video

Video Frame Rate
CVI: PAL 1080p@25 fps; NTSC 1080p@30 fps
AHD: PAL 1080p@25 fps; NTSC 1080p@30 fps
TVI: PAL 1080p@25 fps; NTSC 1080p@30 fps
CVBS: PAL 960H; NTSC 960H

Resolution
1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night
Auto(ICR)/Color/B/W

BLC
BLC; HLC; WDR; HLC-Pro

WDR
DWDR

White Balance
Auto

Gain Control
Manual; Auto

Noise Reduction
3D NR

Illumination Mode
Smart IR & WL (CVI, TVI); WL Mode; IR Mode

Mirror
Yes

Pick-up Distance
8 m (26.25 ft)

Certification

Certifications
CE-LVD: EN 62368-1
CE-EMC: EN 55032; EN 55035

Audio

Built-in Mic
Yes, up to 8 m (26.25 ft)

Camera Audio
CVI; TVI

Two-way Talk
Yes (CVI, TVI)

Speaker
Yes, up to 8 m (26.25 ft)

Port

Video Output
CVI/TVI/AHD/CVBS selectable via one BNC port (DIP Switch)

Power

Power Supply
12 VDC (±30%)

Power Consumption
Max 6.6 W (12 VDC, IR on)

Environment

Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity
<95% RH, non-condensing

Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity
<95% RH, non-condensing

Protection
IP67

Anti-corrosion Level
Basic Protection

Structure

Casing Material
Plastic

Product Dimensions
161.6 × 69.7 × 70 mm (6.36" × 2.74" × 2.76")

Net Weight
0.20 kg (0.44 lb)

Gross Weight
0.29 kg (0.64 lb)

Installation
Wall mount; ceiling mount; vertical pole mount
