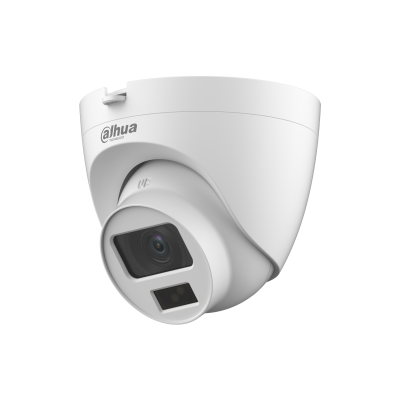

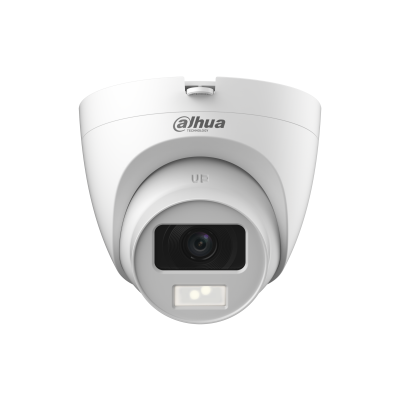

Dahua HDCVI 2MP Eyeball Camera HAC-HDW1200CLQ-IL-A

Camera Overview

• Pixel / Sensor: 2MP CMOS

• Max Resolution: 1920 √ó 1080 (1080p)

• Lens: Fixed 2.8 mm (optional 3.6 mm), M12 mount, F2.0

• Field of View:

  • 2.8 mm: H 102¬∞, V 60¬∞, D 129¬∞

  • 3.6 mm: H 83¬∞, V 48¬∞, D 105¬∞

• Close Focus Distance: 2.8 mm ‚Üí 0.5 m, 3.6 mm ‚Üí 0.7 m

Video & Imaging

• Frame Rate: Max 1080p@25/30 fps depending on PAL/NTSC and CVI/AHD/TVI

• Day/Night: Auto (ICR), Color, B/W

• WDR / BLC / HLC: DWDR, BLC, HLC

• Noise Reduction: 3D NR

• Mirror / Privacy Masking: Yes; 8 rectangle areas

Illumination

• Smart Dual Light: IR + Warm Light (Full Color)

• Distance: 20 m (65.6 ft)

• Min Illumination: 0.01 lux (Color), 0.001 lux (B/W), 0 lux (LED on)

• Illuminator Control: Auto

• Illuminator Number: 2 IR + 2 Warm lights

DORI Distances (2.8 mm / 3.6 mm)

Audio

• Built-in MIC: Yes

• Audio Input / Output: 1 channel

Connectivity

• Video Output: CVI / TVI / AHD / CVBS via BNC (DIP switch)

Power & Environment

• Power Supply: 12 VDC ¬±30%

• Power Consumption: Max 2.6 W (IR on)

• Operating Temp: ‚Äì40 ¬∞C to +60 ¬∞C

• Humidity: <95% RH, non-condensing

• Protection: IP67

Physical

• Casing: Plastic

• Dimensions: Œ¶97.1 √ó 93.8 mm

• Weight: 0.18 kg (net), 0.29 kg (gross)

• Mounting: Wall, ceiling, vertical pole
