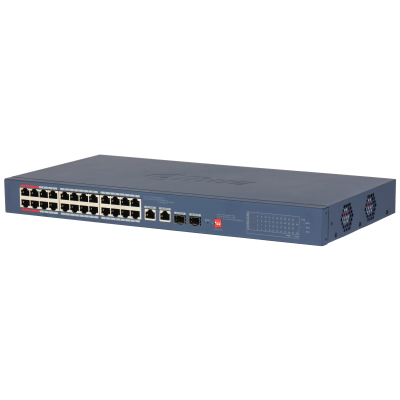

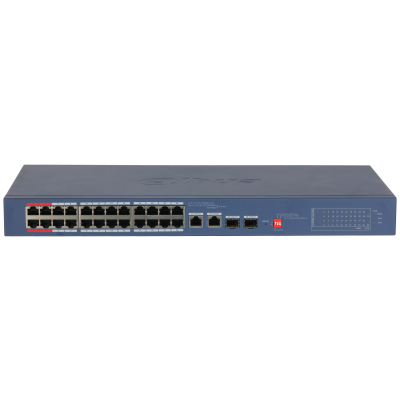

DAHUA 26-PORT CLOUD MANAGED DESKTOP SWITCH WITH 24-PORT POE (CS4226-24ET-375)

DESCRIPTION

Switch with 24 PoE 100Mbps ports + 2 Ethernet Gigabit combo ports + 2 optical SFP combo ports, 375W, cloud manageable, rackable

• 24 √ó 10/100 Mbps PoE ports, 2 √ó Gigabit combo ports

• 375W total PoE budget; 802.3af/at on all PoE ports, additional 802.3bt on Red port

• DIP switch for fast ON/OFF of Cloud-Managed mode, PoE Watchdog, and 250m long-distance PoE

• Operating temperature: ‚Äì10¬∞C to +55¬∞C

• Supports VLAN and loop protection

• Web-managed and centralized cloud management via DoLynk app with real-time network monitoring

• Easy configuration for auto-detection and network setup

HARDWARE
Included Power Adapter: Yes
PoE: Yes
Ethernet Ports: 24
Ethernet Port Speed: 10/100 Mbps
Optical Port Speed: 1000 Mbps
Ethernet Uplink Speed: 10/100/1000 Mbps
Optical Uplink Speed: 1 Gbps
Port Description: Ports 1-24: RJ-45 10/100 Mbps (PoE); Ports 25-26: RJ-45 10/100/1000 Mbps (combo); Ports 25-26: SFP 1000 Mbps (combo)
Reset Button: 1
Power Supply: Built-in 100-240 VDC, 47-63 Hz, max 7 A
Operating Temperature: –10°C to +55°C
Operating Humidity: 5%–95% RH, non-condensing
Storage Temperature: –40°C to +70°C
Storage Humidity: 5%–95% RH, non-condensing
Power Consumption: Idling ≤8.5 W; Full load 400 W

PERFORMANCE
Layer: Layer 2
Management Type: Yes
Smart Managed Switch: Yes
MTBF: 64.20 years
Switching Capacity: 8.8 Gbps
Packet Forwarding Rate: 6.55 Mpps
Packet Buffer Size: 4 Mbit
Jumbo Frame: 15K Byte
MAC Table Size: 8K
VLAN Number: 32
Communication Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z

FEATURES
PoE Protocol: IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt
PoE Power: Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 375 W
PoE Power Management: Yes
PoE Pin Assignment: 1,2,4,5 (V+), 3,6,7,8 (V-)
Long Distance PoE Transmission: Yes
VLAN Function: Port-based VLAN
IEEE 802.3x Flow Control: Yes
DHCP Function: DHCP Client
Equipment Management: Web and App management

GENERAL
Static Protection: Air discharge 8 kV; Contact discharge 6 kV
Lightning Protection: Common mode 4 kV; Differential mode 2 kV
Net Weight: 2.62 kg
Gross Weight: 3.22 kg
Product Dimensions: 440 √ó 220 √ó 44 mm
Packaging Dimensions: 540 √ó 342 √ó 90 mm
Casing Material: Sheet metal
Installation: Desktop mount, Rack mount
